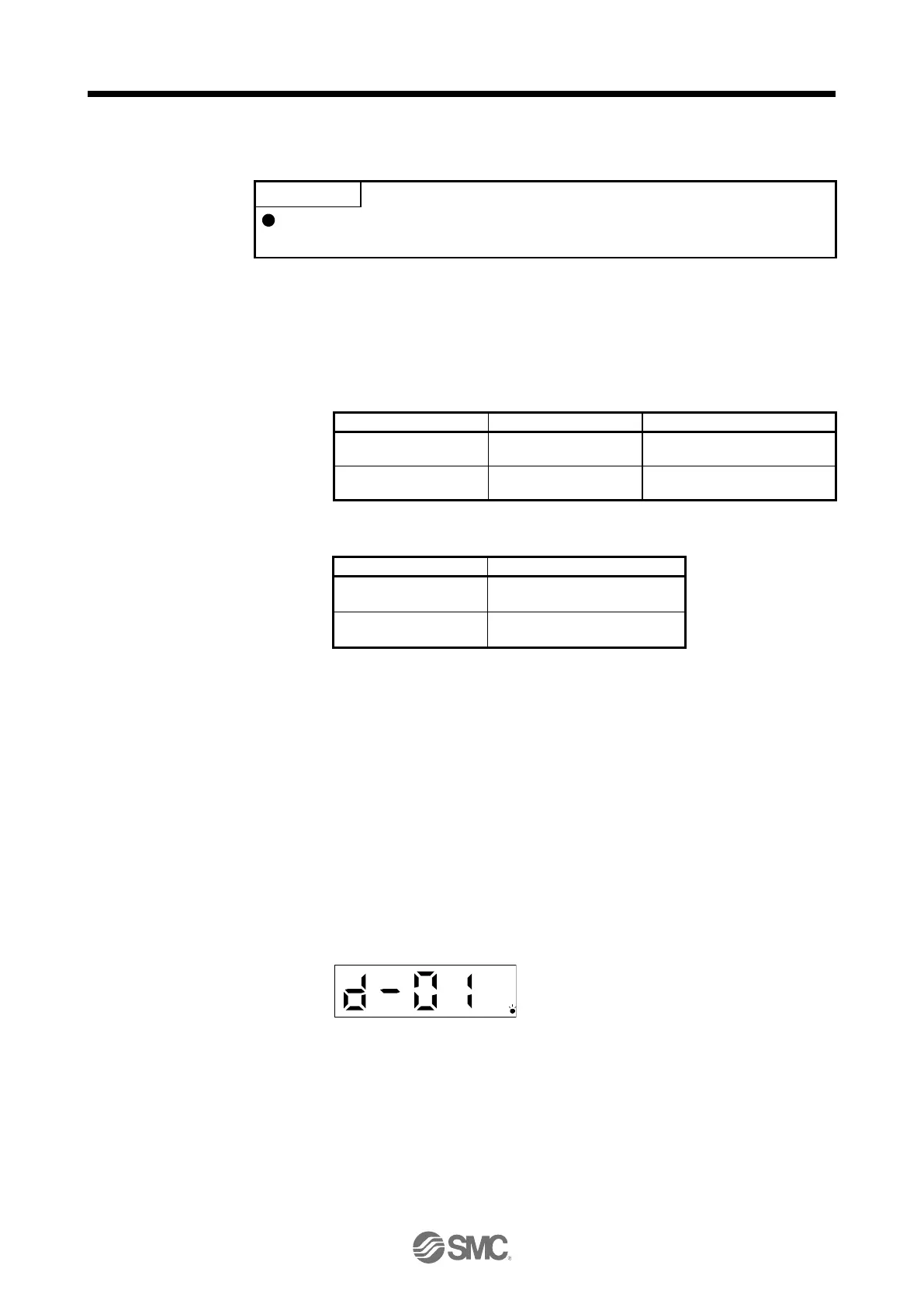

When performing JOG operation, turn on EM2, LSP and LSN. LSP and LSN can
be set to automatic on by setting [Pr. PD01] to " _ C _ _ ".
JOG operation can be performed when there is no command from the PC or PLC...etc.
(a) Operation
The servo motor rotates while holding down the "UP" or the "DOWN" button. The servo motor stops
rotating by releasing the button. The operation condition can be changed using Setup software (MR
Configurator2
TM
). The initial operation condition and setting range for operation are listed below.
If the USB cable is disconnected during JOG operation using the Setup software (MR
Configurator2
TM
), the servo motor decelerates to a stop.
(b) Status display
Press the "MODE" button in the JOG operation-ready status to call the status display screen. When
the JOG operation is performed using the "UP" or "DOWN" button, the servo status is displayed
during the JOG operation. Every time the "MODE" button is pushed, the next status display screen
appears. When one cycle of the screen display is complete, it returns to the jog operation-ready
status screen. Refer to section 4.5.3 for details of status display. Note that the status display screen
cannot be changed by the "UP" or "DOWN" button during the JOG operation.
(c) Termination of JOG operation
To end the JOG operation, shut the power off once, or press the "MODE" button to switch to the next
screen, and then hold down the "SET" button for 2 s or longer.
