6. NORMAL GAIN ADJUSTMENT
6 - 15

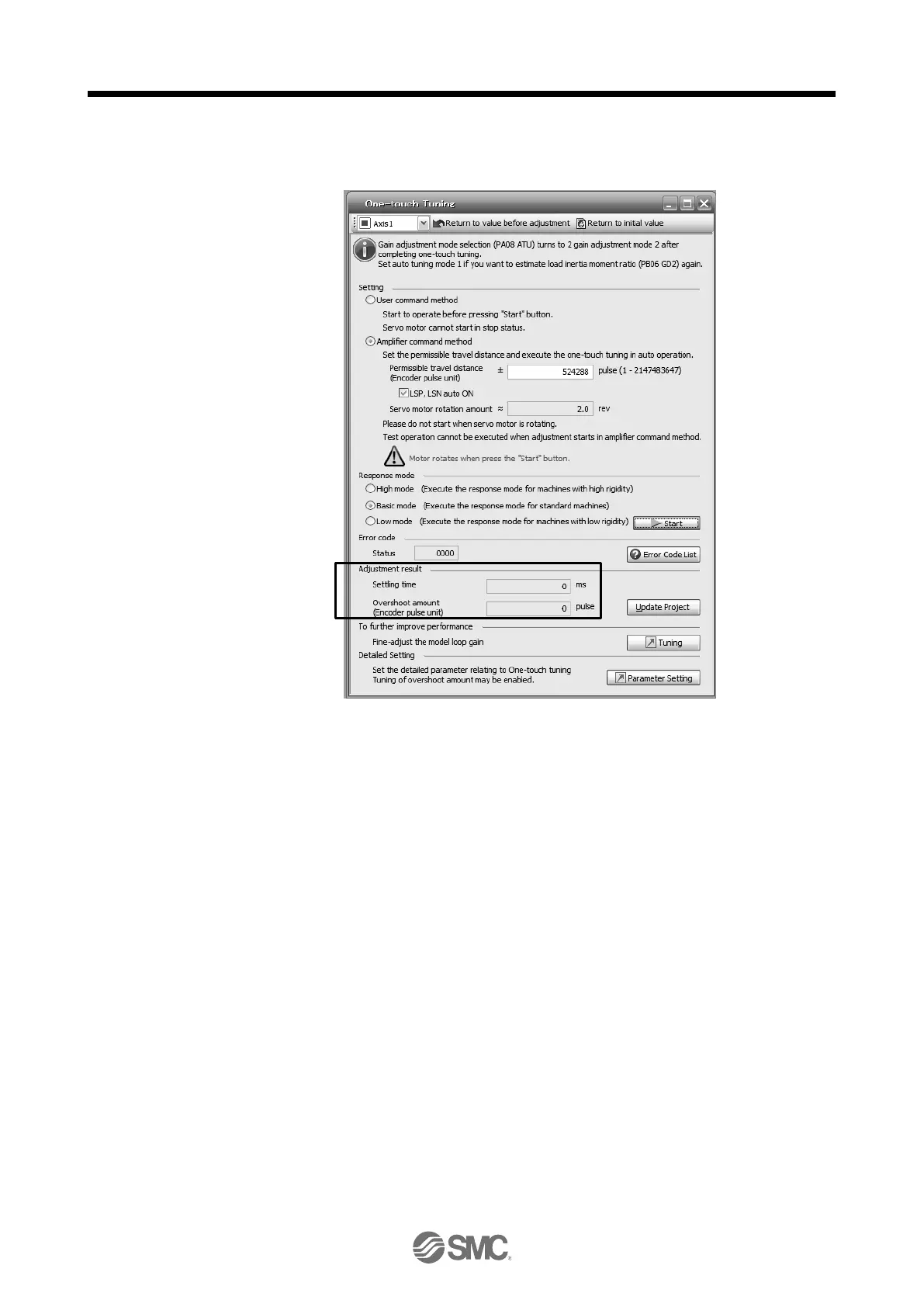

After the one-touch tuning is completed, "0000" will be displayed at status in error code. In addition,
settling time and overshoot amount will be displayed in "Adjustment result".
(d) Stop of one-touch tuning
During one-touch tuning, clicking the stop button stops one-touch tuning. If the one-touch tuning is
stopped, "C000" will be displayed at status in error code. After the one-touch tuning is stopped,
parameters will return to the values at the start of the one-touch tuning. To stop one-touch tuning,
and execute it again, stop the servo motor once. In addition, after returning the moving part to the
tuning start position, execute it.
