6. NORMAL GAIN ADJUSTMENT
6 - 14
After one-touch tuning is executed using the driver command method, control will not be performed
by commands from the controller. To return to the state in which control is performed from the
controller, cycle the power.

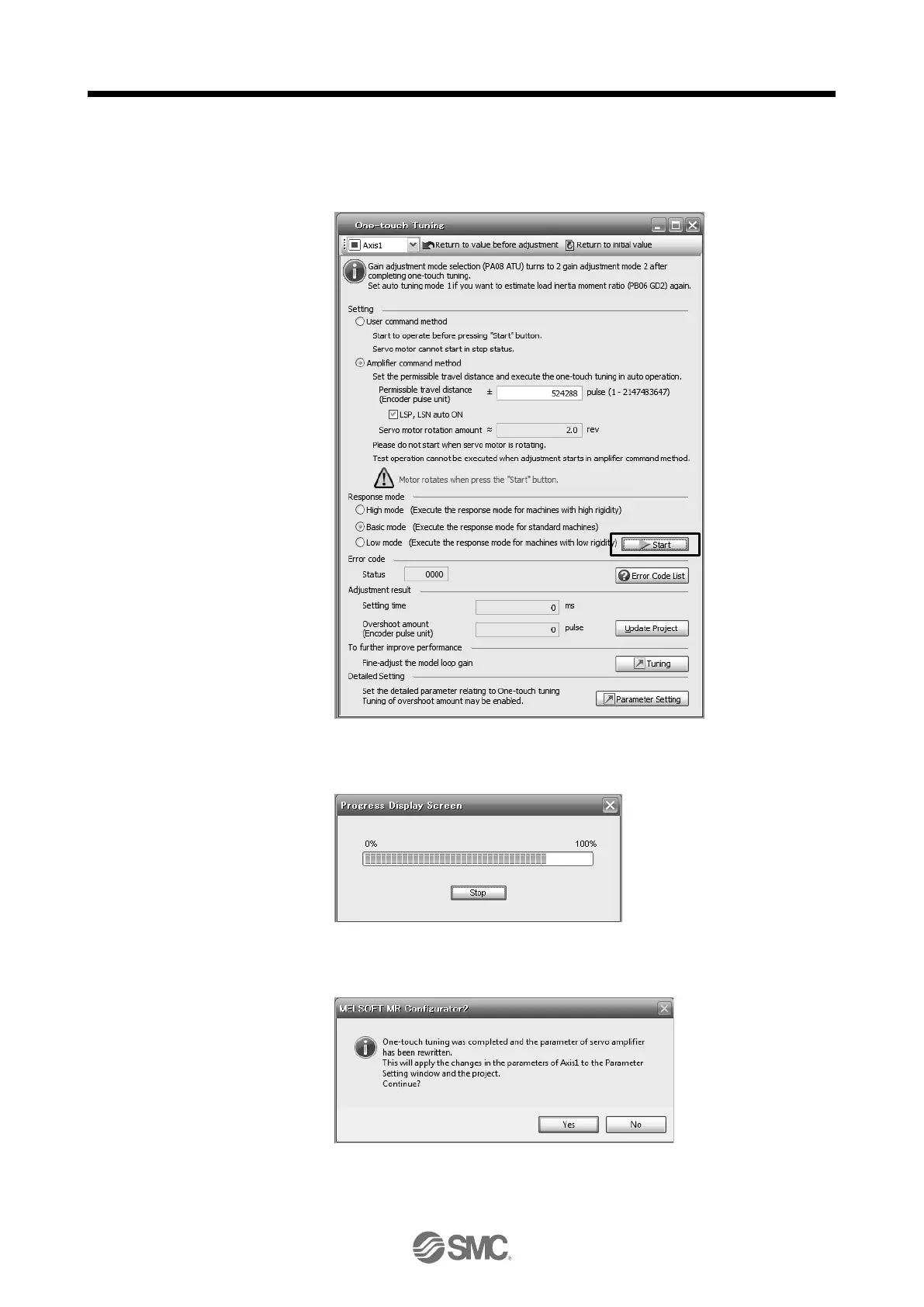

During processing of one-touch tuning, the progress will be displayed as follows. Tuning will be
completed at 100%.
Completing the one-touch tuning will start writing tuning parameters to the driver, and the following
window will be displayed. Select whether or not to reflect the tuning result in the project.
