16. POSITIONING MODE
a) When using the Rotation direction specifying ([Pr. PT03] = "_ 0 _ _")
When the position data of 270.000 degrees is specified, the servo motor rotates in the CCW
direction.
When the position data of -90.000 degrees is specified, the servo motor rotates in the CW
direction.
When the position data of -360.000 degrees is specified, the servo motor rotates in the CW
direction. (A)
When you specify 360.000 degrees or 0 degree to the position data, the servo motor rotates in
the CCW direction. (B)

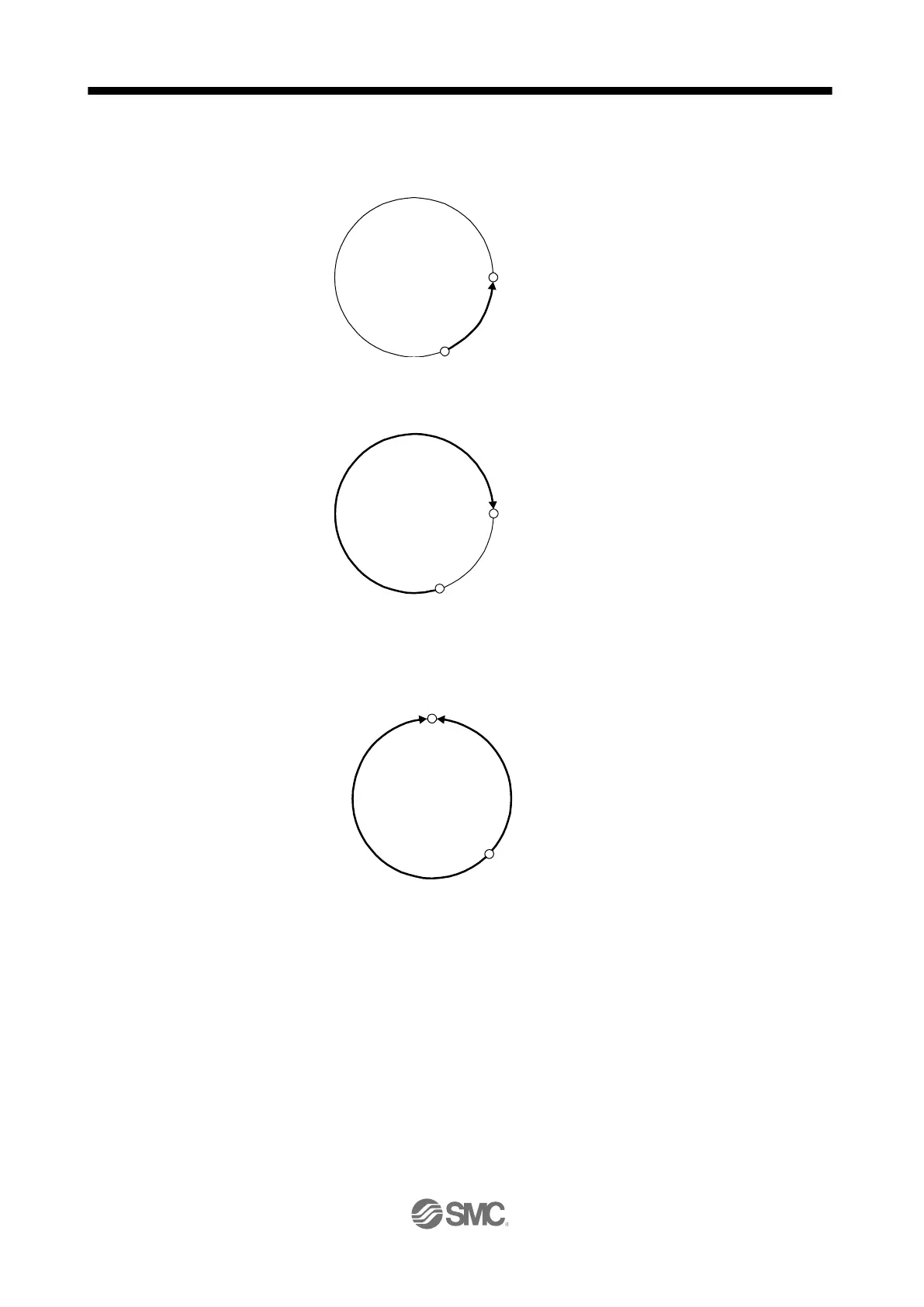

Target
position
Current
position
Target
position
Current
position
Target position
(-360)
Current position
(B)
(A)
