SMC Networks LECSB2-T Series User Manual

16 - 92
16. POSITIONING MODE

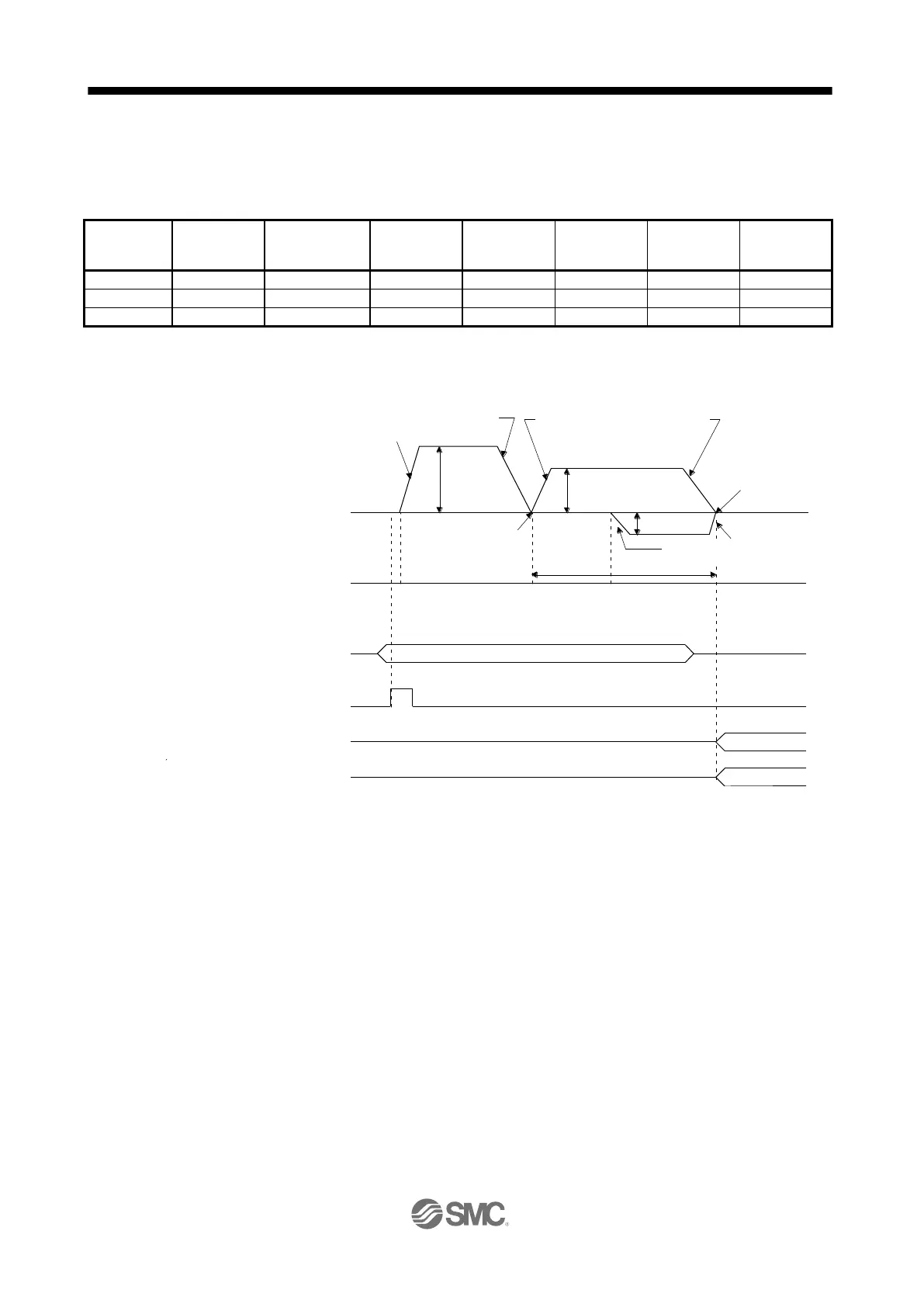

b) Positioning in the reverse direction midway
The following shows an operation example with the set values listed in the table below.
In this example, point table No. 1 and point table No. 3 are under the absolute value command
method, and point table No. 2 is under the incremental value command method.
Point
table No.
Position data
[10
STM
μm]
Servo motor
speed [r/min]
Acceleration
time constant
[ms]
Deceleration
time constant
[ms]
Dwell [ms]
Auxiliary
function
M code
1
5.00
3000
100
150
100
1
05
2
7.00
2000
150
200
200
3
10
3
8.00
1000
300
100
Disabled
0 (Note)
15
Note.
Always set "0" or "2" to the auxiliary function of the last point table among the consecutive point tables.
0: When using the point table under the absolute value command method
2: When using the point table under the incremental value command method
Servo motor speed
Forward rotation
0 r/min
Reverse rotation
Position address
Point table No. to select
ST1 (Forward rotation start)
ON
OFF
PT0 (Point table No. output 1)
to PT7 (Point table No. output 8)
(Note)
M code output
Dwell time
100 ms
Speed
(3000)
Acceleration/deceleration time
constant of point table No. 1
Acceleration/deceleration time
constant of point table No. 2
Speed
(2000)
Speed (1000)
Dwell time
200 ms
7.00
0 5.00 8.00 12.00
1
1
05
Acceleration/deceleration time
constant of point table No. 3
