16 - 103
16. POSITIONING MODE

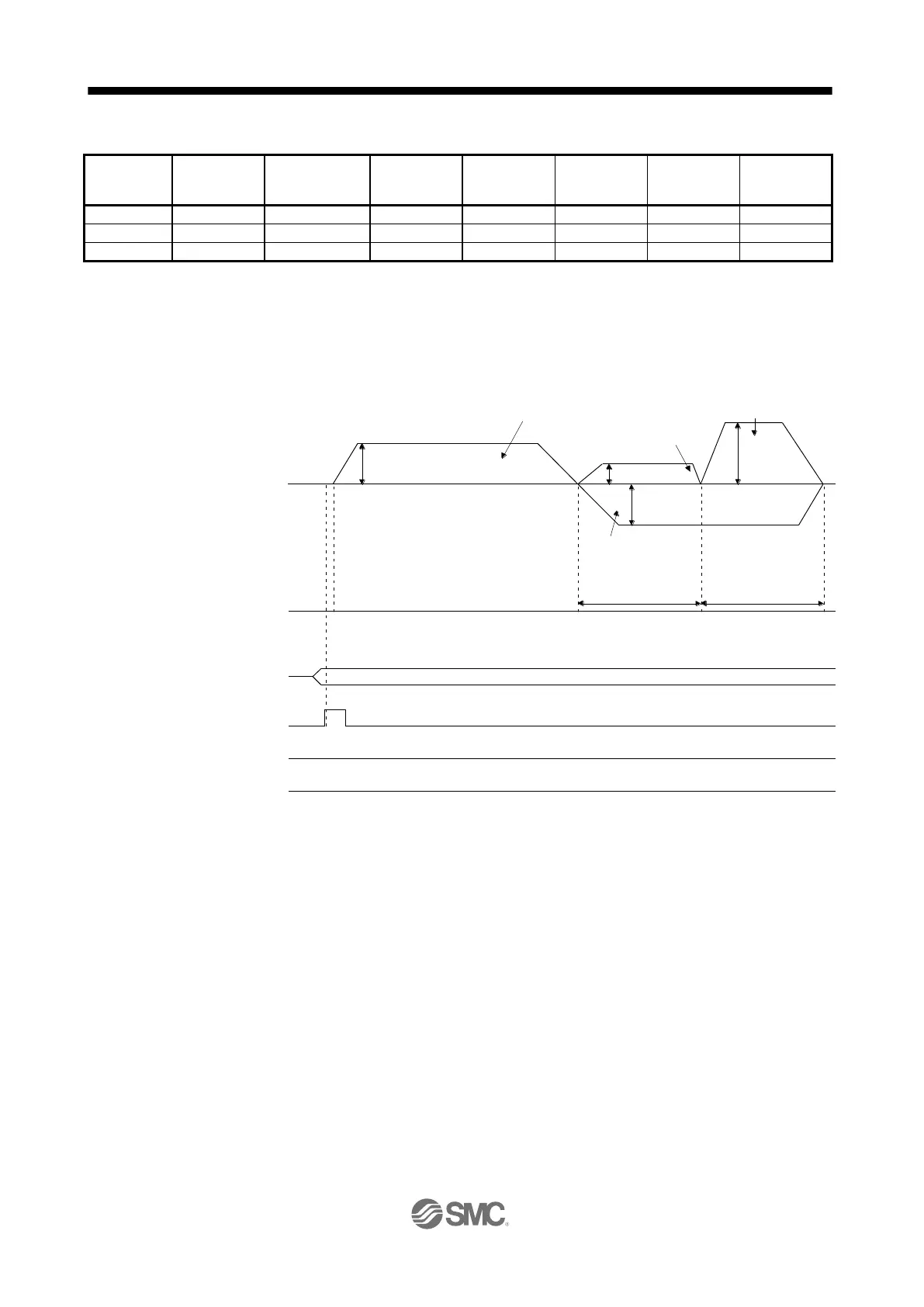

Example 2. Operations when "11" is set to the auxiliary function of point table No. 3
Point
table No.
Position data
[10
STM
μm]
Servo motor
speed [r/min]
Acceleration
time constant
[ms]
Deceleration
time constant
[ms]
Dwell [ms]
Auxiliary
function
M code
1
5.00
3000
100
150
100
3
05
2
10.00
2000
150
200
200
1
10
3
5.00
1000
300
100
150
11
15
Operation sequence
1) Starting with point table No. 2
2) Executing point table No. 3
3) Executing point table No. 1 when "11" is set to the auxiliary function of point table No. 3
4) Repeating the above execution in the sequence of 1) to 2) to 3) to 1) to 2) to 3)
Note.
PT0 to PT7 and M code are not outputted in automatic continuous operation.
Servo motor speed
Forward rotation
0 r/min
Reverse rotation
Position address
Point table No. to select
ST1 (Forward rotation start)
ON
OFF
PT0 (Point table No. output 1)
to PT7 (Point table No. output 8)
(Note)
M code output (Note)
Point table No. 2
Speed
(2000)
Speed (1000)
Point table No. 3
5.00
1)
1)
2)
3)
0 10.00 15.00
2
Speed
(2000)
Speed
(3000)
Point table No. 1
5.00
Point table No. 2
