16. POSITIONING MODE
(j) Indirect specification with general purpose registers (R1 to R4, D1 to D4)
You can indirectly specify the setting values of the "SPN", "STA", "STB", "STC", "STD", "MOV",
"MOVI", "MOVA", "MOVIA", "TIM", and "TIMES" commands.
The value, which is stored in each general purpose register (R1 to R4, D1 to D4), is used as the
setting value of each command.
While the program is not executed by a communication command, you can change the general
purpose registers by using Setup software (MR Configurator2
TM
) or a communication command.
The data of the general purpose registers is erased at power-off of the driver. Note that you can
store the data of the general purpose registers (R1 to R4) in EEP-ROM.
The setting range of each general purpose register is that of the instruction for which each register is
used.

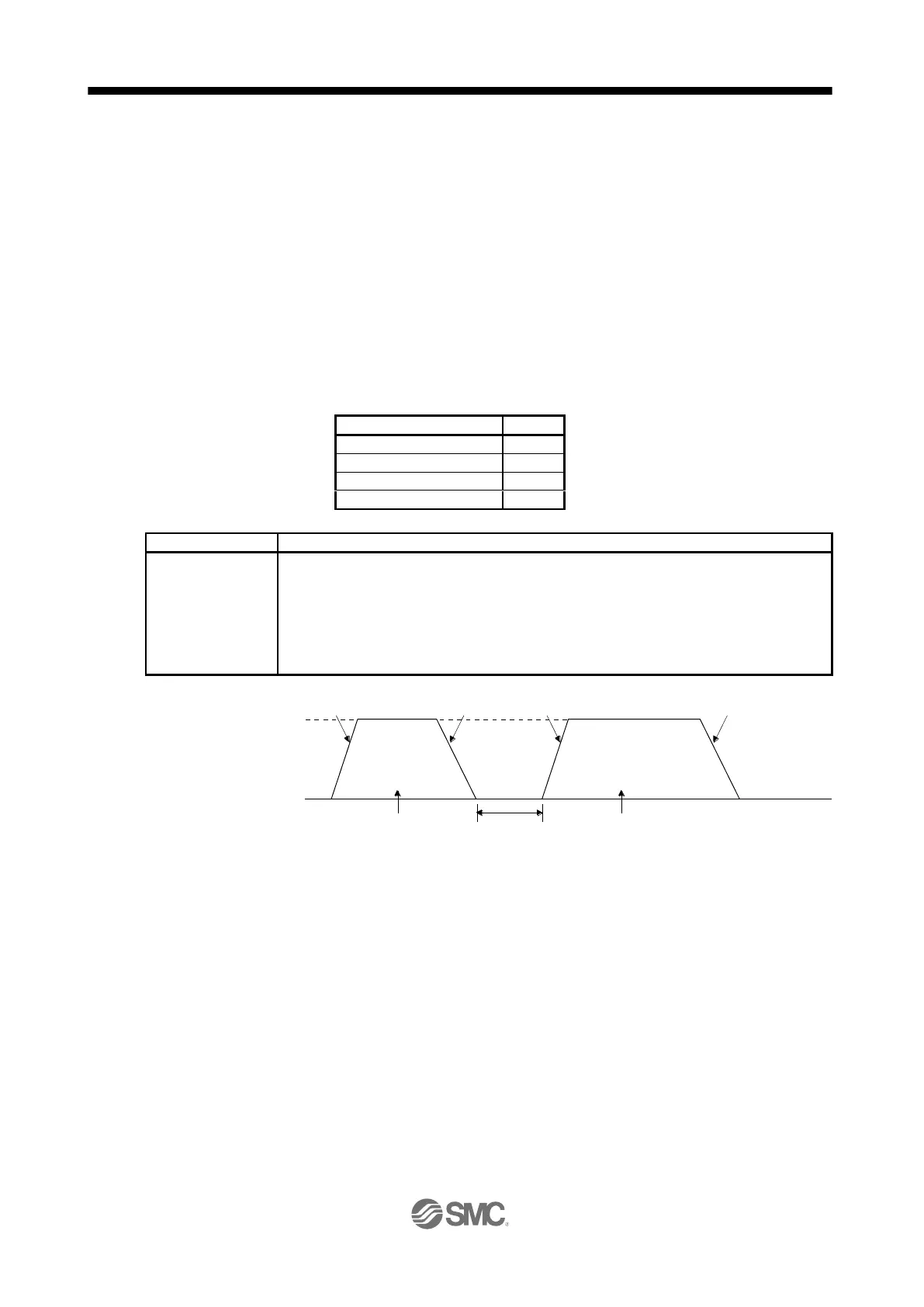

The following explains a case where the general purpose registers are set as shown below before
the execution of the program.
General purpose register
Setting
R1
1000
R2
2000
D1
200
D2
300
Command
Description
SPN (1000)
Servo motor speed
1000 [r/min]
a)
STA (D1)
Acceleration time constant
D1 = 200 [ms]
b)
STB (D2)
Deceleration time constant
D2 = 300 [ms]
c)
MOVI (R1)
Incremental value travel command
R1 = 1000 [×10
STM
μm]
d)
TIM (100)
Dwell
100 [ms]
e)
MOVI (R2)
Incremental value travel command
R2 = 2000 [×10
STM
μm]
f)
STOP
Program stop
d) R1 = 1000 × 10
STM
μ
m
e) Dwell
(100 ms)
f) R2 = 2000 × 10
STM
μ
m
a) 1000 r/min
b) D1 = 200 ms
c) D2 = 300 ms
b) D1 = 200 ms
c) D2 = 300 ms
Servo motor speed
Forward rotation
0 r/min
Reverse rotation
