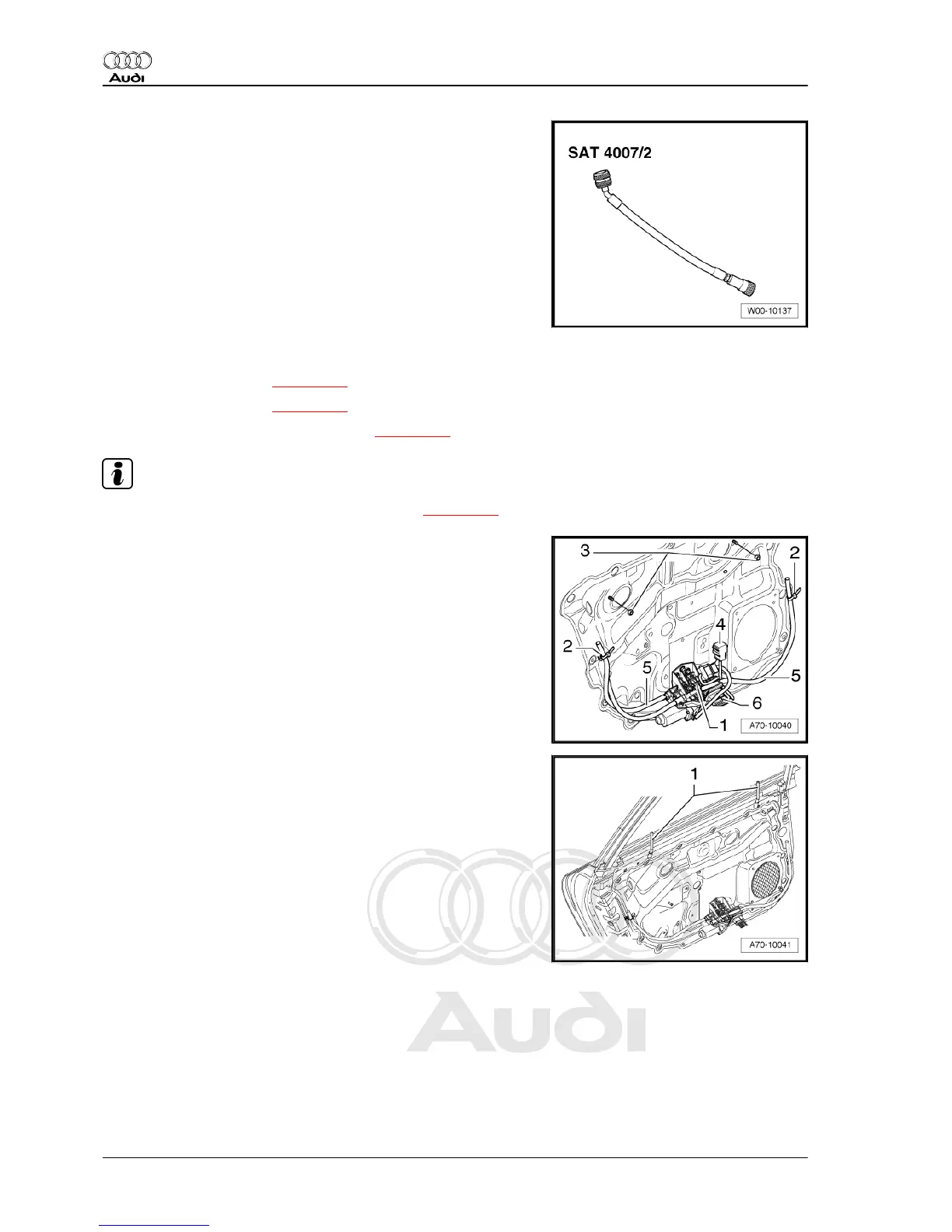

♦ Guide sleeve -T40077-
Removing
– Remove the door trim ⇒ page 189 .
– Remove the insulation ⇒ page 192 .
– Remove the electric sun blind housing ⇒ page 200 .
Note
Moving electric sun blind with defective drive unit ⇒ page 203 .
– Sever the cable ties -2- at the conduits -5- and at the wiring
harness.
– Unplug the connector -4- to the electric sun blind drive unit
-1-.
– Insert the guide sleeves -T40077- -1-.
