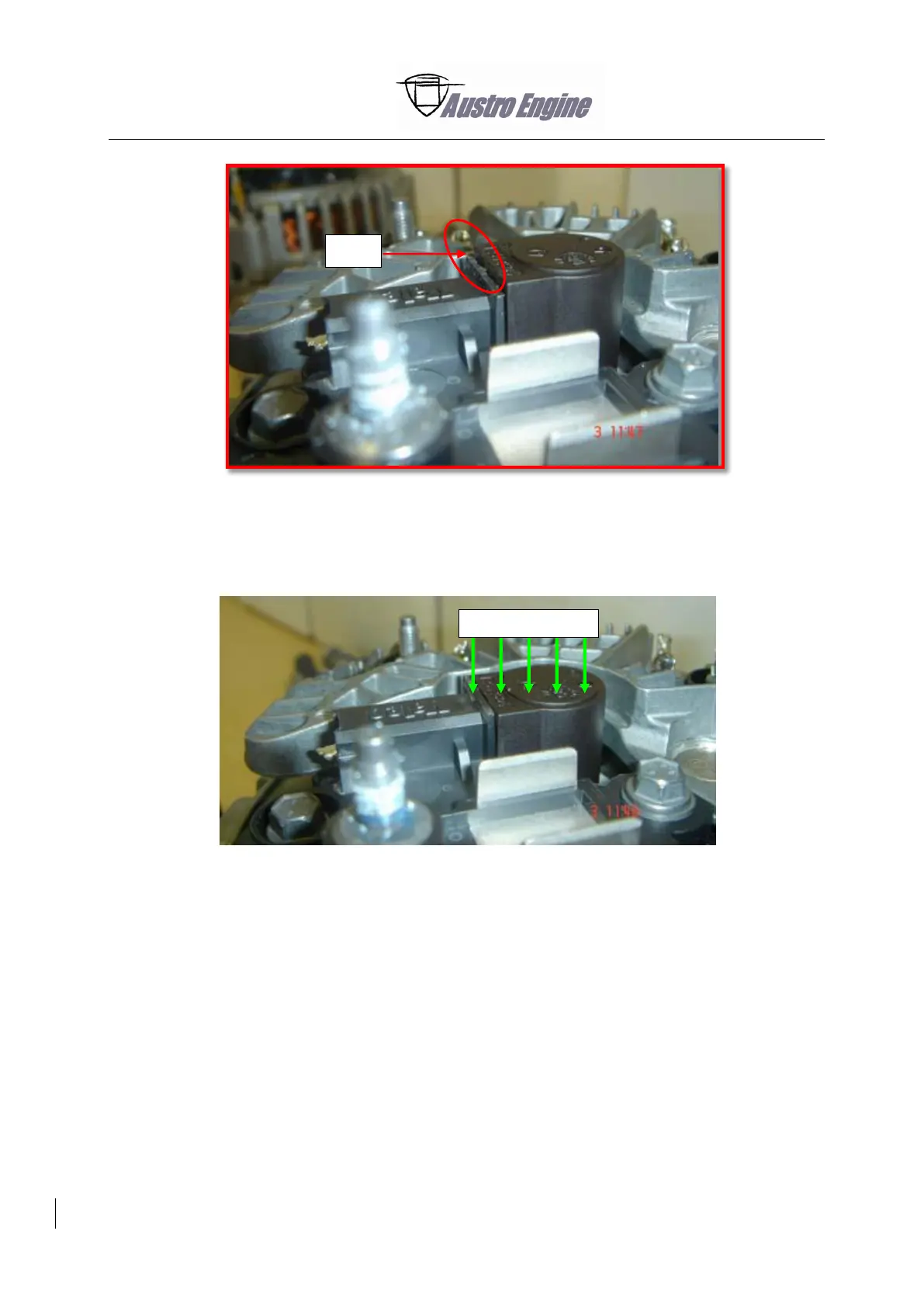

Fig. 24 - 18 Brush holder assembly mounted onto the alternator
(brushes are not released) - incorrect
Fig. 24 - 19 Cover at end position (brushes are released) - correct
Gap
Push Direction
