Austro Engine E4 Series - (C) Remove the Camshaft Sensor Housing for CAS 2

E4 Series
Maintenance Manual
Reciprocating
Engine
E4.08.04
Rev. 29
Page 279
85-Maintenance Procedures
01-Jul-2020
(c) Remove the Camshaft Sensor Housing for CAS 2
Detail Steps/Work Items
Key Items/References
(1)
Remove the camshaft position sensor CAS 2.
Refer to Section 76-10-00 Paragraph
6.A.
For CAS 2 is installed under the injector cover, refer to Fig. 85 - 100.
(2)
Remove the three screws from the sensor
housing cover.
Refer to Fig. 85 - 99.
(3)
Remove the sensor housing cover.
(4)
Pull out the shaft coupling assembly.
(5)
Remove and discard the O-Ring.
(6)
Remove the two screws from the sensor
housing.
(7)
Remove the sensor housing.
(8)
Remove and discard the gasket.

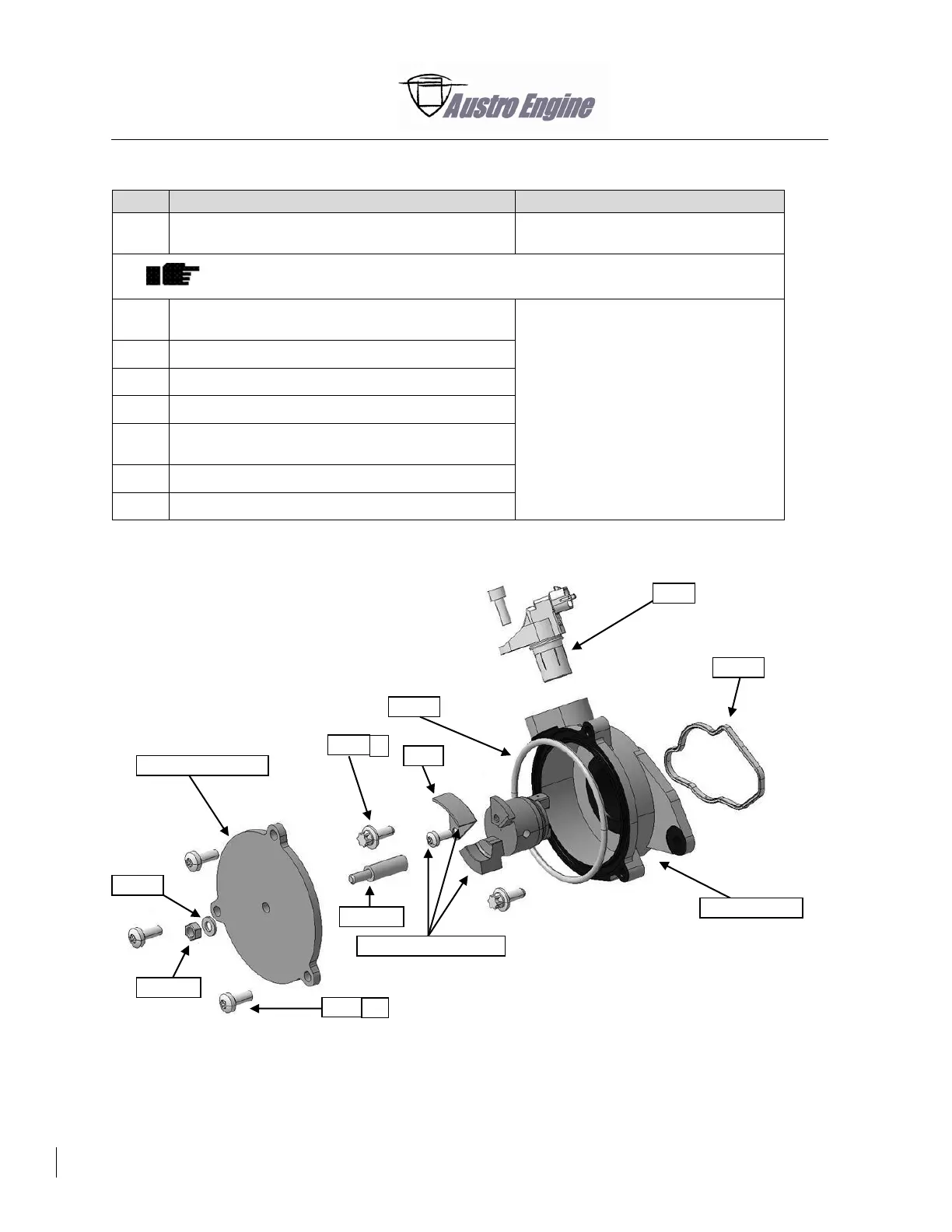

Fig. 85 - 99 Exploded view of the CAS 2 housing
CAS 2
Screw
Sensor housing cover
Shaft coupling assembly
O-Ring
Screw
Sensor housing
Gasket
2x
Stop bolt
Stop nut
Washer
Nose
3x
