Austro Engine E4 Series User Manual

E4 Series
Maintenance Manual
Reciprocating
Engine
E4.08.04
Rev. 29
Page 301
85-Maintenance Procedures
01-Jul-2020
Detail Steps/Work Items
Key Items/References
(4)
Guide the two aligning pins into the
corresponding bore at the cylinder head.
(5)
Tighten the 4 screws on the cylinder head cover.
Torque 12 Nm.
Refer to Fig. 85 - 126.

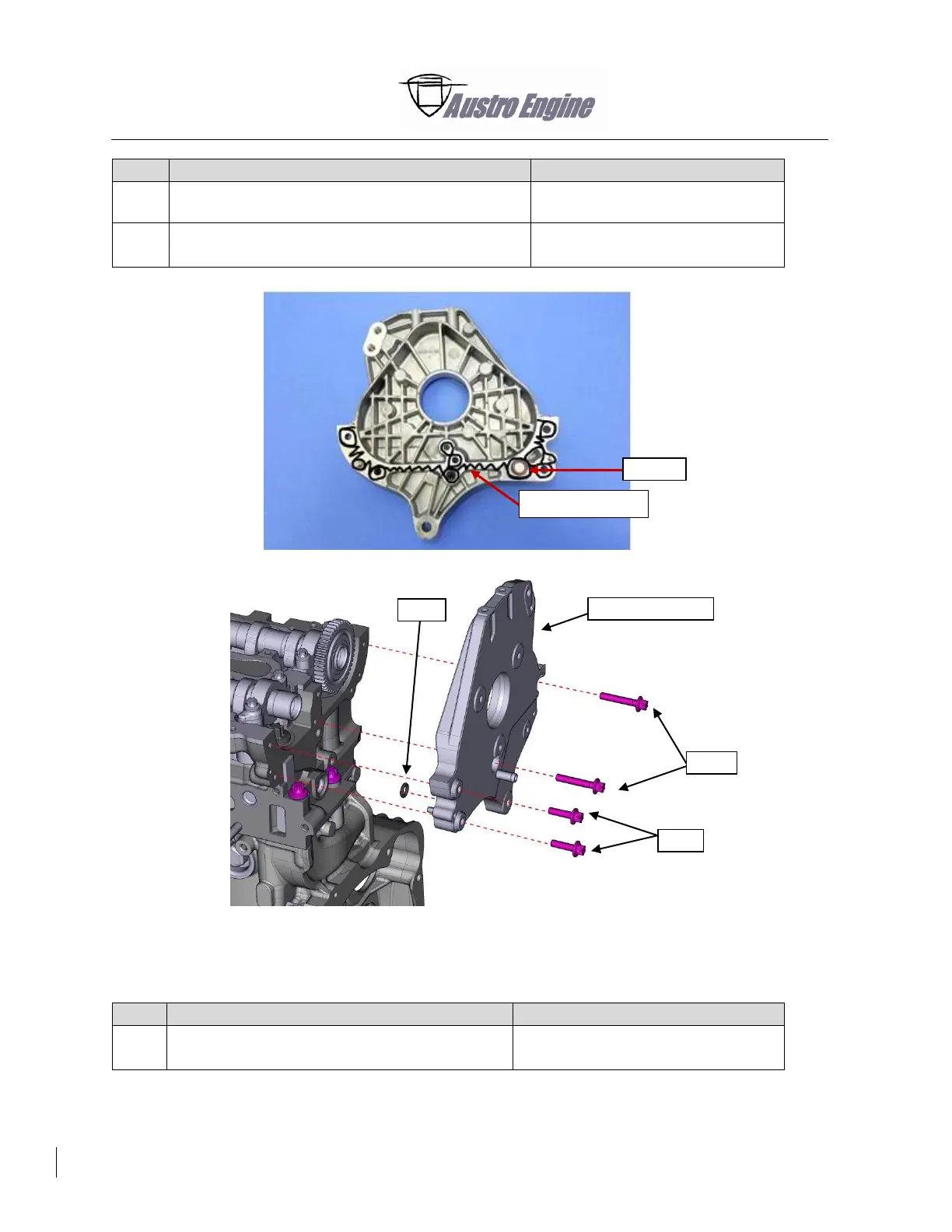

Fig. 85 - 125 Rear cylinder head cover sealing surface
Fig. 85 - 126 Rear cylinder head cover installation
(i) Install the Camshaft Sensor Housing for CAS 2
Detail Steps/Work Items
Key Items/References
(1)
Lubricate the gasket with engine oil.
Use a new gasket.
Refer to Fig. 85 - 129.
Sealing surface
O-Ring
Cylinder head cover
Screw
Screw
O-Ring
