(g) Install the front cylinder head cover
Detail Steps/Work Items
Key Items/References
(1)
Clean the sealing surface on the front cylinder
head cover.
Refer to Fig. 85 - 122 and Fig. 85
- 123.
(2)
Apply engine sealant on the sealing surface.
Refer to the consumable list.
Refer to Fig. 85 - 122.
(3)
Install a new O-Ring on the cylinder head cover.
Refer to Fig. 85 - 123.
(4)
Put the front cover in position on the cylinder
head.
(5)
Tighten the 5 screws on the cylinder head cover.
Torque 12 Nm.
Refer to Fig. 85 - 123.
For the Cylinder Head Version 2 (Refer to Section 85-30-00 Paragraph 4 for
description), refer to Fig. 85 - 124.

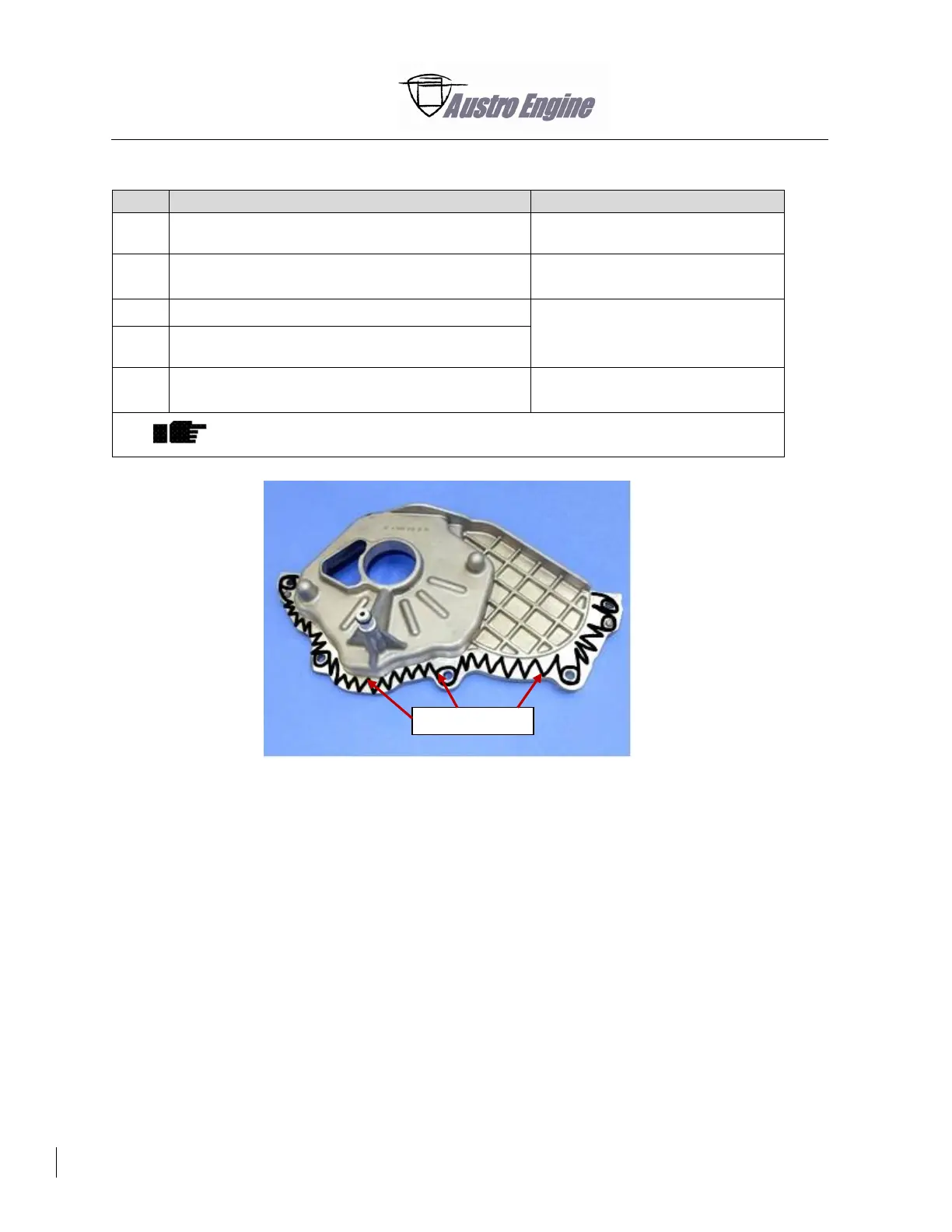

Fig. 85 - 122 Front cylinder head cover sealing surface
Sealing surface
