Austro Engine E4 Series User Manual

E4 Series
Maintenance Manual
Reciprocating
Engine
E4.08.04
Rev. 29
Page 285
85-Maintenance Procedures
01-Jul-2020
(i) Remove the EGR (Exhaust Gas Recirculation) closing cover top
Detail Steps/Work Items
Key Items/References
(1)
Remove the 2 screws from the EGR cover.
Refer to Fig. 85 - 106.
(2)
Lift the EGR cover.

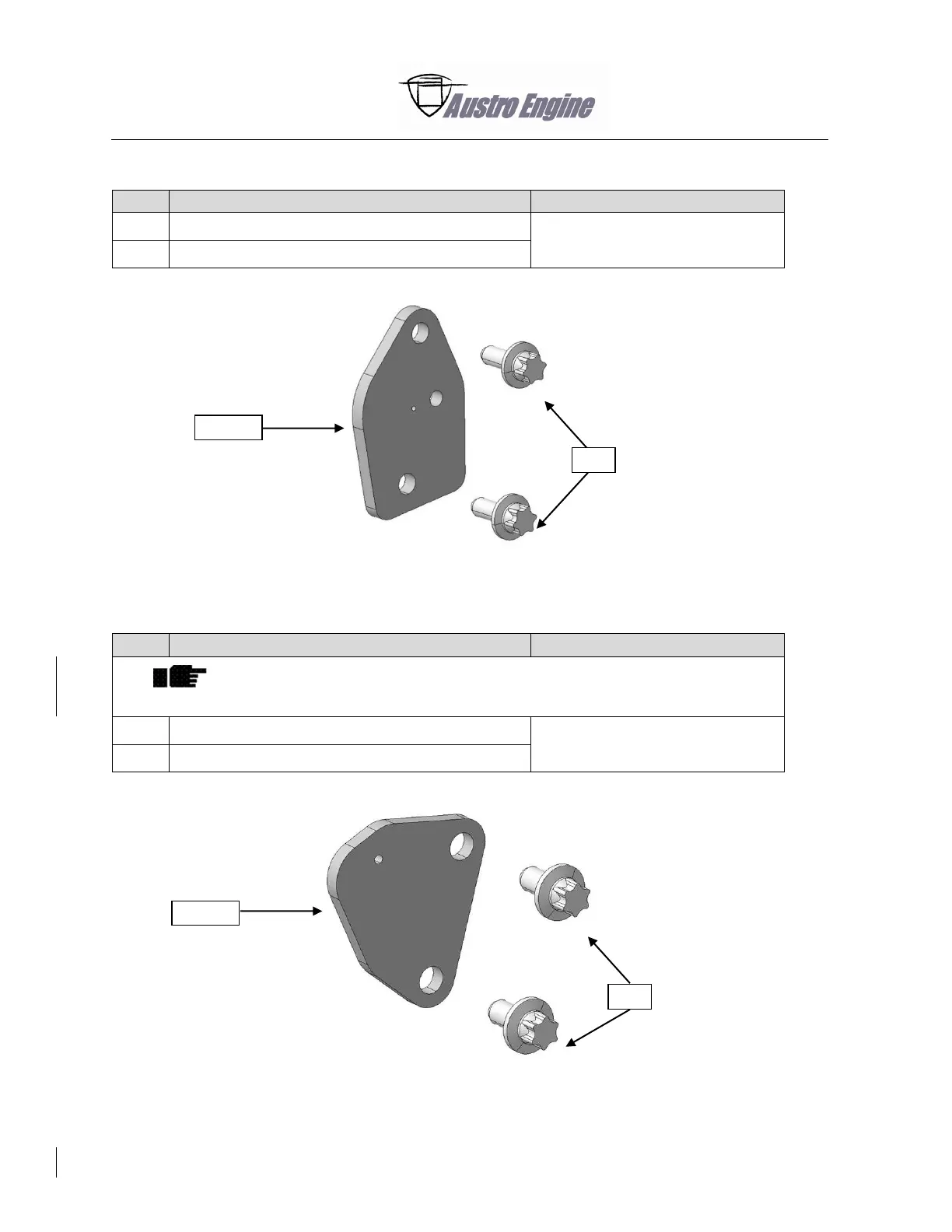

Fig. 85 - 106 EGR cover top
(j) Remove the EGR (Exhaust Gas Recirculation) closing cover bottom
Detail Steps/Work Items
Key Items/References
For the Cylinder Head Version 2 (Refer to Section 85-30-00 Paragraph 4 for
description), The EGR closing cover bottom is not required. Only one screw
is used for wiring harness attachment.
(1)
Remove the 2 screws from the EGR cover.
Refer to Fig. 85 - 107.
(2)
Lift the EGR cover.
Fig. 85 - 107 EGR cover bottom
Screw
EGR cover
Screw
EGR cover
