Austro Engine E4 Series User Manual

E4 Series
Maintenance Manual
Reciprocating
Engine
E4.08.04
Rev. 29
Page 297
85-Maintenance Procedures
01-Jul-2020
(e) Install the chain gear
Detail Steps/Work Items
Key Items/References
(1)
Fix the camshafts in position.
Use Tool AE300T-009.
(2)
Install the chain on the chain gear.
Align the timing chain gear until it
engages on the installed pin on
the camshaft.
Refer to Fig. 85 - 119.
(3)
Tighten the 3 screws on the chain gear.
Torque 18 Nm.
Refer to Fig. 85 - 119.
For Cylinder Head Version 2 (Refer to Section 85-30-00 Paragraph 4 for
description), tighten the chain gear with Nord-Lock washers and screws with a
torque of 20 Nm. Refer to Fig. 85 - 120.
(4)
Remove the camshaft locking tool.
Tool number AE300T-009.
(5)
Move the chain guide until you can hit the guide
fastening pin into the cylinder head.
Hit the bolt until you hear a full
metal sound.
Hammering tool AE300T-010.

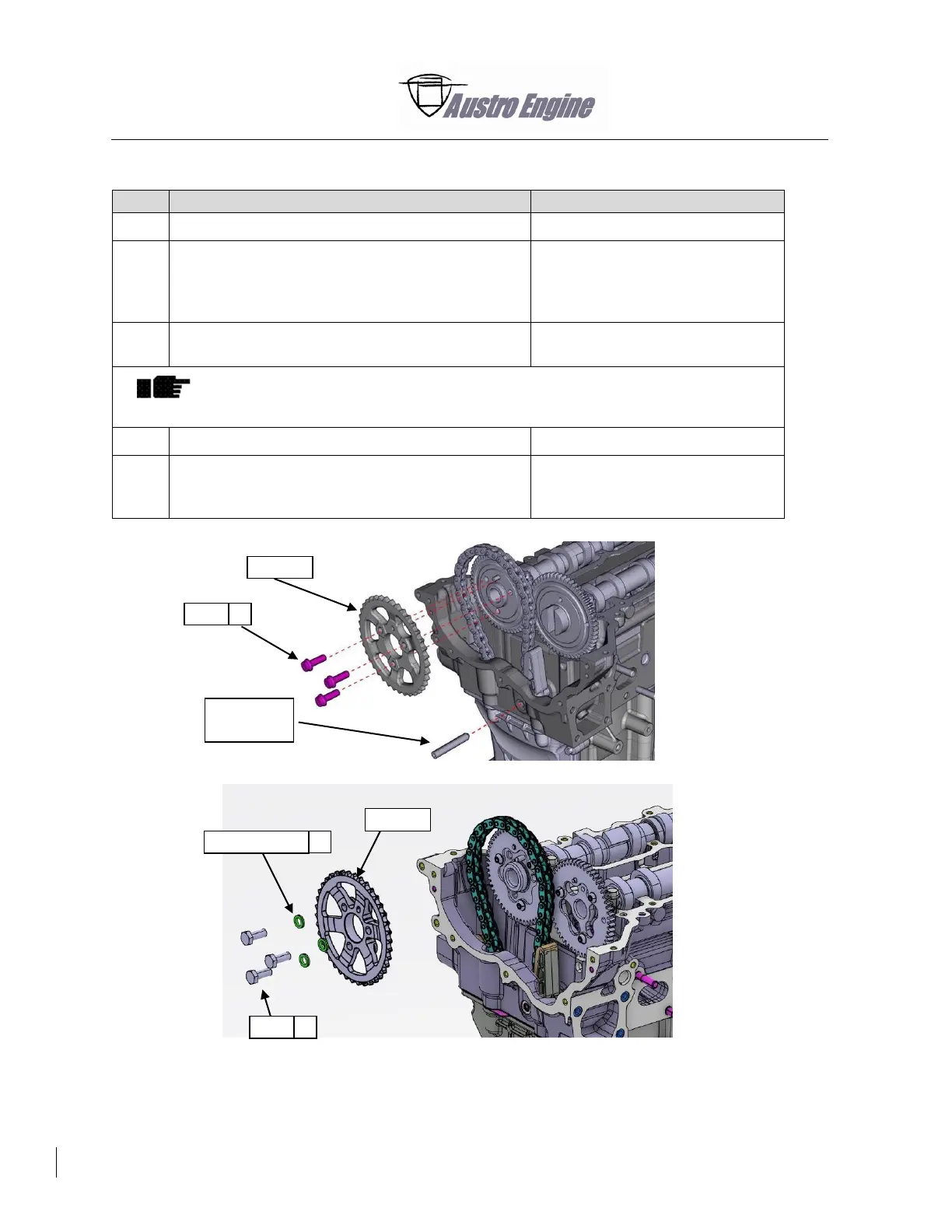

Fig. 85 - 119 Chain gear installation
Fig. 85 - 120 Chain gear installation
(for Cylinder Head with Part no E4A-12-500-000)
Screw
3x
Chain gear
Chain guide
fastening pin
Screw
3x
Nord-Lock washer
3x
Chain gear
