Austro Engine E4 Series User Manual

E4 Series
Maintenance Manual
Engine Control
System
Page 206
E4.08.04
Rev.29
76 - Maintenance Procedures
01-Jul-2020
4. Crankshaft Sensor
A. Remove the Crankshaft Sensor
Detail Steps/Work Items
Key Items/References
(1)
Disconnect the electrical lines CRS1 or CRS2.
Refer to Fig. 76 - 11.
(2)
Remove the screw that from the crankshaft
sensor.
(3)
Remove the crankshaft sensors.
B. Install the Crankshaft Sensor
Detail Steps/Work Items
Key Items/References
(1)
Install the crankshaft sensors.
The distance between the two mass
flywheel must be 0.8 mm +/- 0.5
mm.
(2)
Tighten the screw that attaches each
crankshaft sensor.
Torque 11 Nm.
Refer to Fig. 76 - 11.
(3)
Make sure the sensors are correctly installed.
Refer to Fig. 76 - 11.
(4)
Connect the electrical line CRS1 or CRS2.
(5)
Do an engine ground run.
Refer to Section 71-00-01.

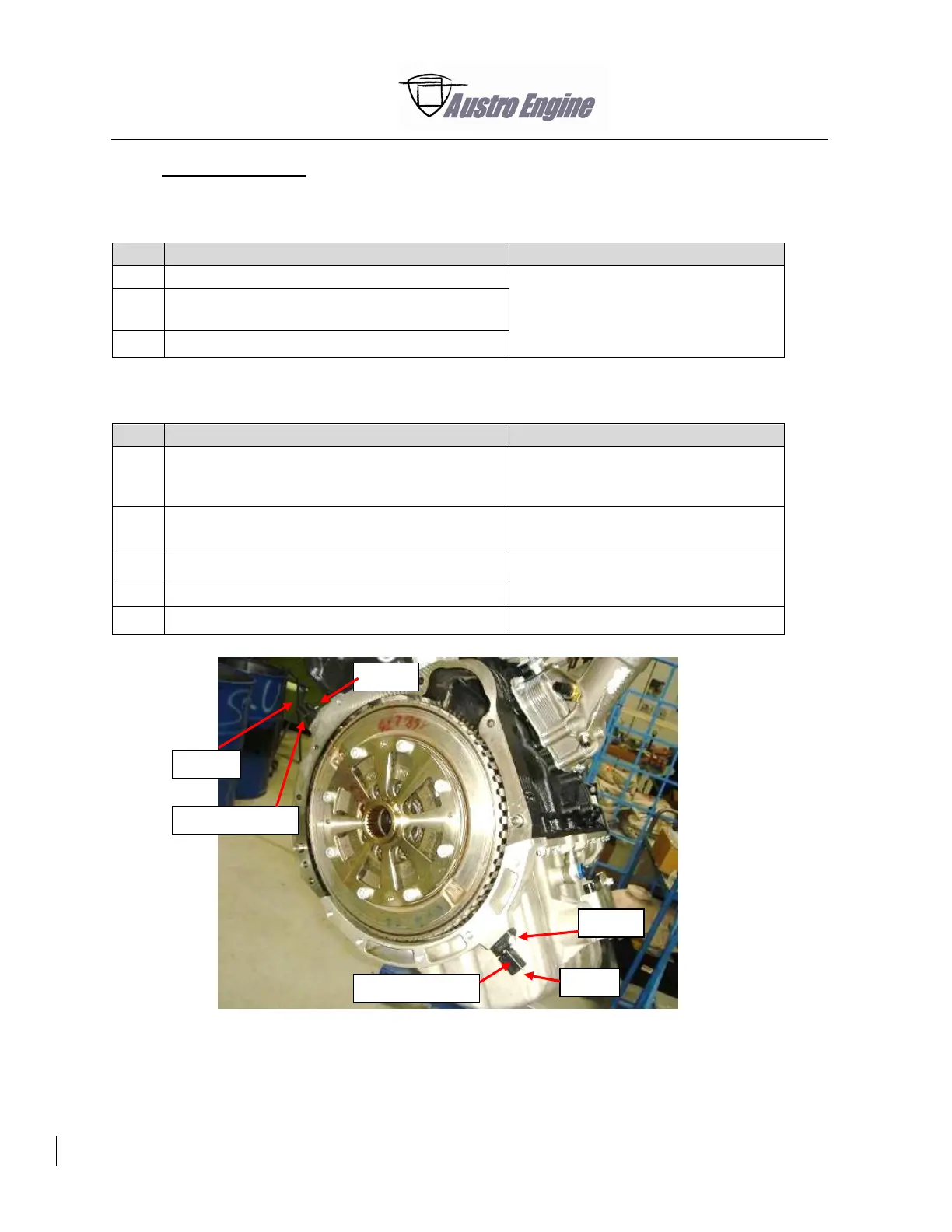

Fig. 76 - 11 Crankshaft Sensor
CRS1
CRS2
Screw
Screw
Crankshaft Sensor
Crankshaft Sensor
