F. Install the magnetic drain pug
Detail Steps/Work Items
Key Items/References
(1)
Examine the gaskets for wear.
If worn, use a new gasket.
(2)
Lubricate the gasket with acid free lubricant.
(3)
Install the magnetic drain plug.
Torque 12 Nm.
Refer to Fig. 85 - 20.
(4)
Secure the magnetic drain plug with lock-
wire.
Refer to Fig. 85 - 20.
(5)
Fill the gearbox oil.
Refer to Paragraph K. (b).
(6)
Tighten the gearbox filler plug.
Torque 12 Nm.
(7)
Secure the filler plug with lock-wire.

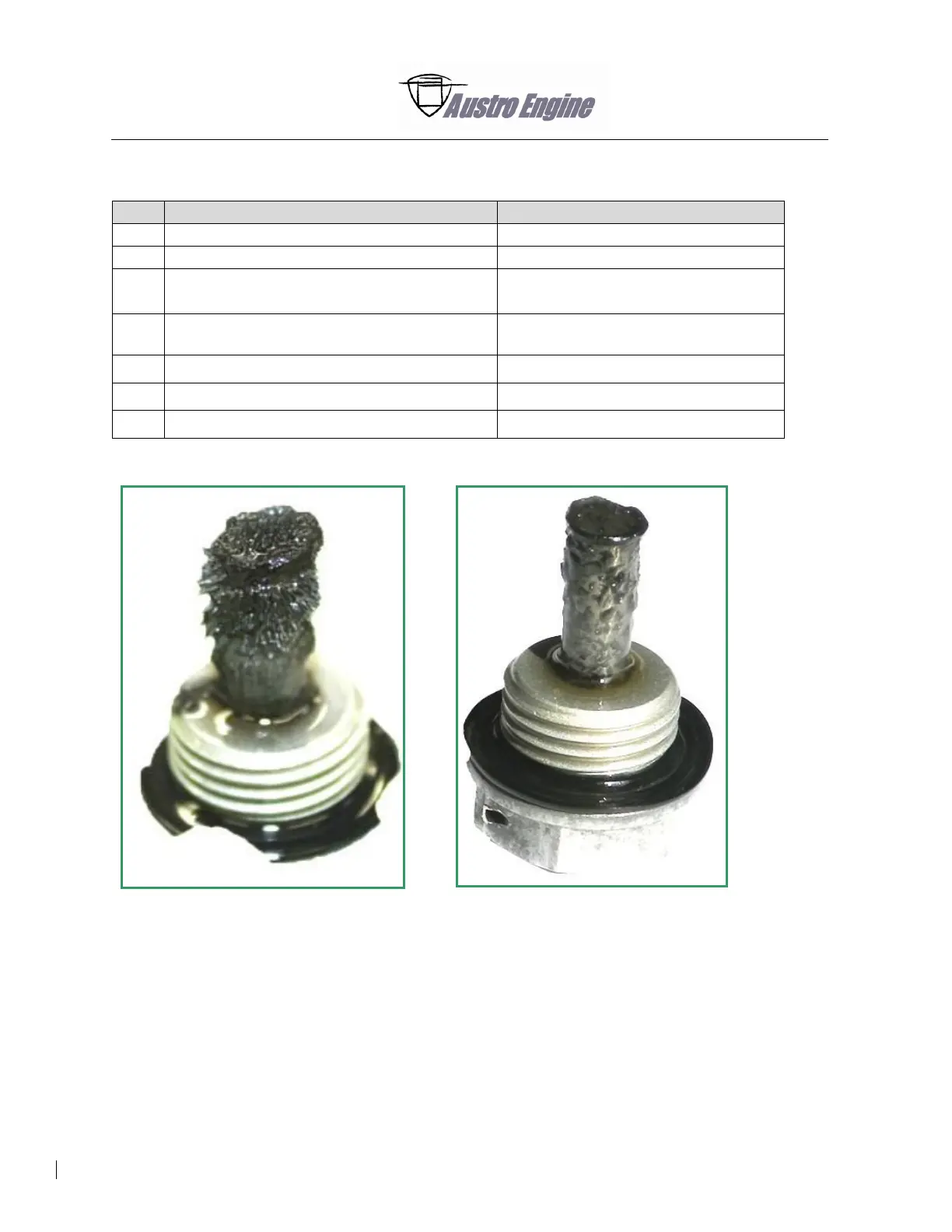

Fig. 85 - 26 Magnetic drain plug
inspection
(Permitted quantity of debris permitted for
first 100 h gearbox oil inspection)
Fig. 85 - 27 Magnetic drain plug
inspection
(Permitted accumulation of debris)
