Austro Engine E4 Series User Manual

E4 Series
Maintenance Manual
Electrical Power
Page 212
E4.08.04
Rev.29
24-30-00
01-Jul-2020

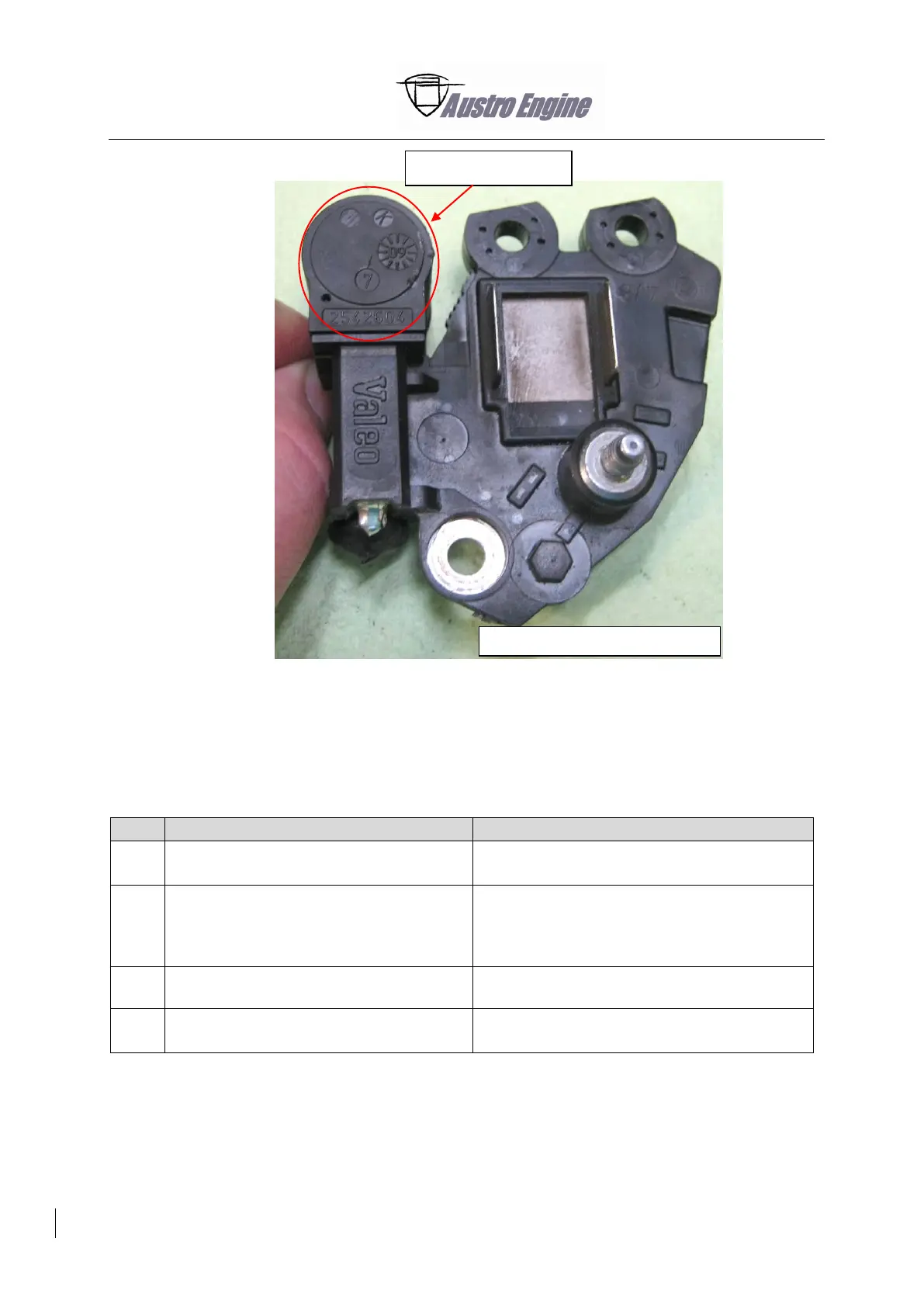

Fig. 24 - 17 Brush holder and cover
H. Install the Brush Holder
Detail Steps/Work Items
Key Items/References
(1)
Assemble the brush holder with screws
R1; R2 and R3.
Refer to Fig. 24 - 20.
Use fastening torque 4 Nm +/-0.5.
(2)
Push down the brush cover to its end
position.
The brushes are released only if the cover
reaches the end position.
Refer to Fig. 24 - 18 - Wrong installation and
Fig. 24 - 19 - Correct installation.
(3)
Put the black plastic alternator cover on
the alternator backside.
(4)
Screw down the hexagonal screws G and
G2.
Refer to Fig. 24 - 21.
Use fastening torque 4 Nm +/-0.5.
Backside of ASSY Brush Holder
Backside of Cover
