Austro Engine E4 Series User Manual

E4 Series
Maintenance Manual
Reciprocating
Engine
E4.08.04
Rev. 29
Page 283
85-Maintenance Procedures
01-Jul-2020
(f) Remove the chain tensioner
Detail Steps/Work Items
Key Items/References
(1)
Remove the chain tensioner with the sealing ring
from the cylinder head.
Refer to Fig. 85 - 103.

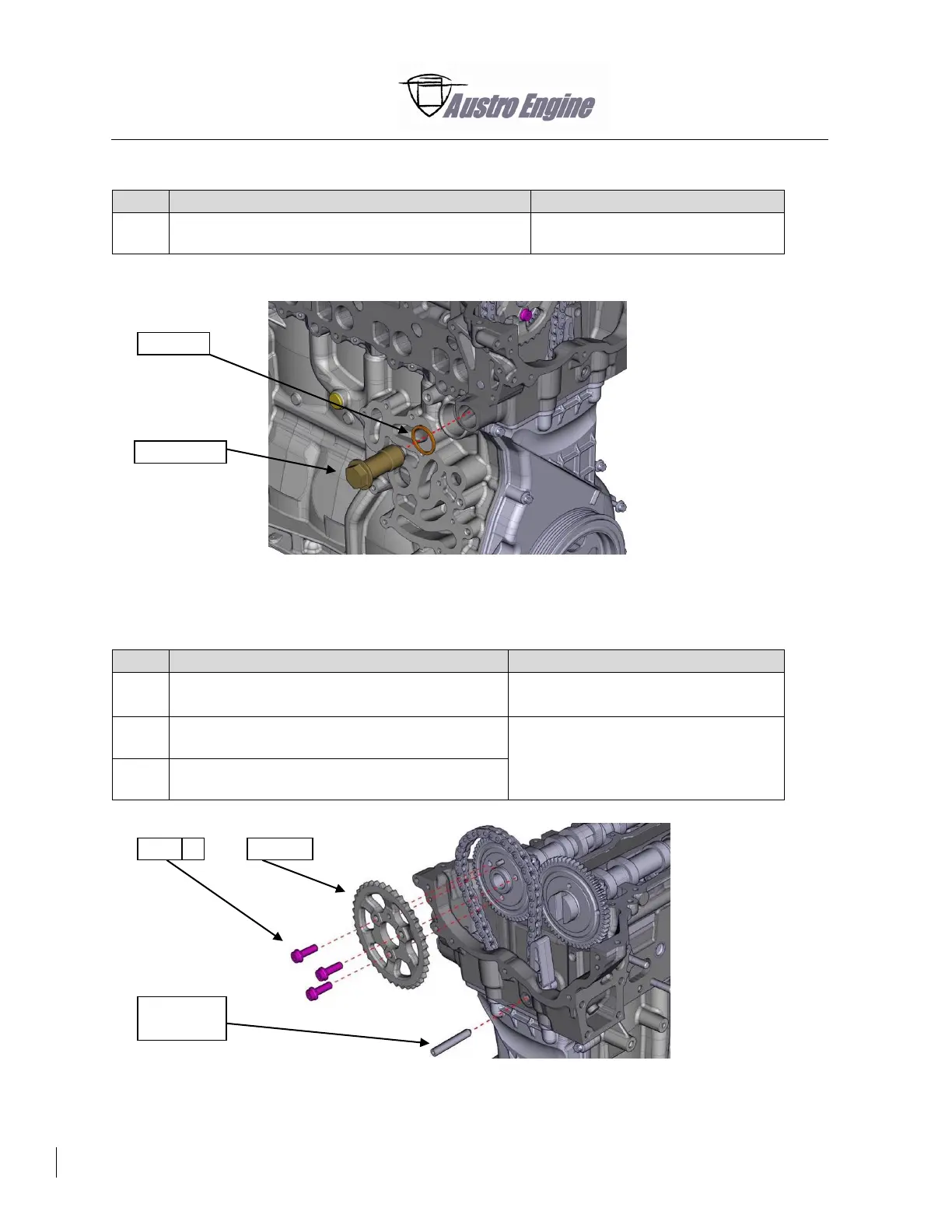

Fig. 85 - 103 Chain tensioner
(g) Remove the chain gear
Detail Steps/Work Items
Key Items/References
(1)
Remove the chain guide fastening bolt from
the cylinder head.
Use the hammering tool AE300T-010.
Refer to Fig. 85 - 104.
(2)
Remove the 3 screws that attach the chain
gear.
Refer to Fig. 85 - 104.
(3)
Remove the chain gear with the timing chain
from the intake camshaft.
Fig. 85 - 104 Chain gear
Sealing ring
Screw
3x
Chain gear
Chain guide
fastening bolt
Chain tensioner
