Austro Engine E4 Series User Manual

E4 Series
Maintenance Manual
Reciprocating
Engine
Page 316
E4.08.04
Rev. 29
85-Maintenance Procedures
01-Jul-2020

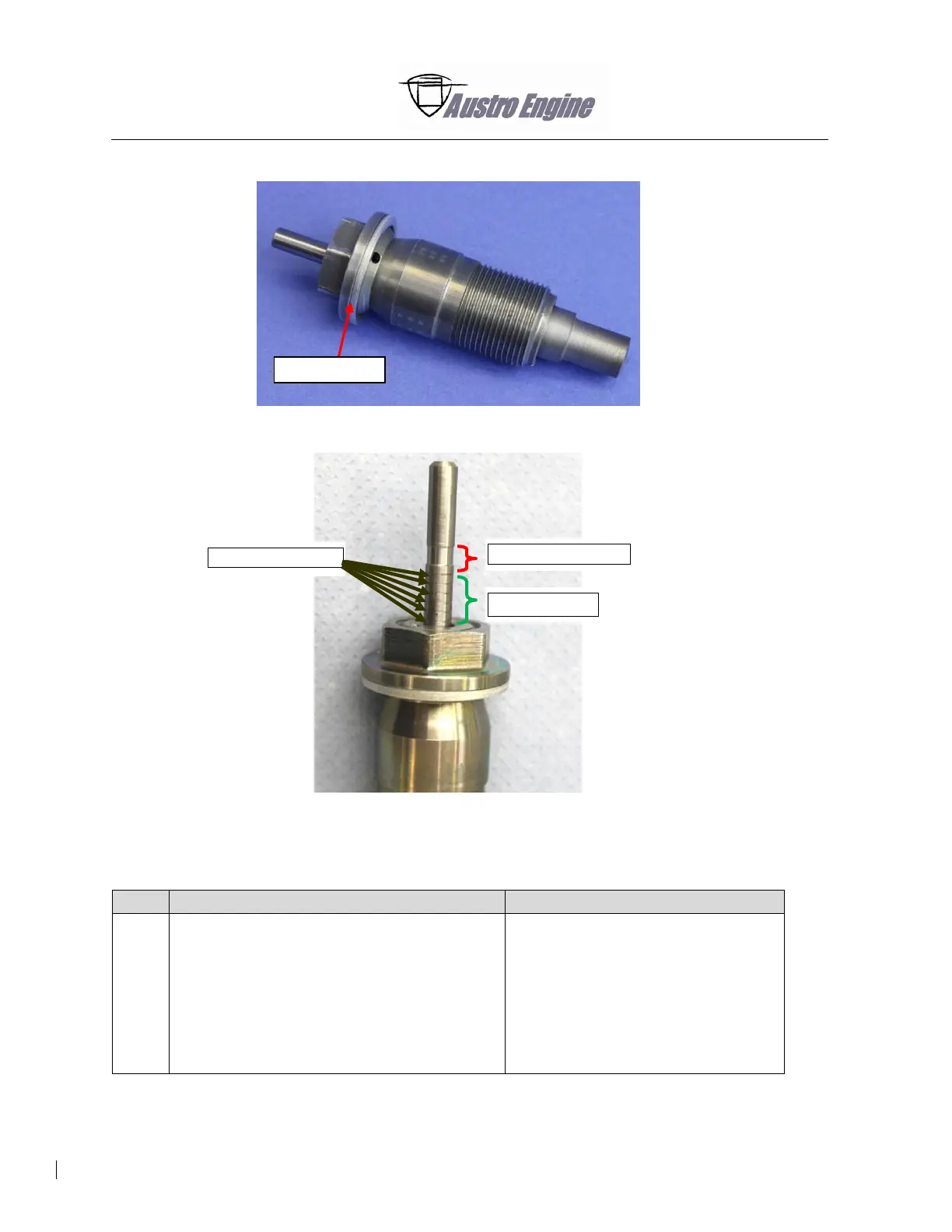

Fig. 85 - 138 Timing Chain Measuring Tool (TCMT)
Fig. 85 - 139 Indicator scale TCMT
(c) Complete a check of the timing chain
Detail Steps/Work Items
Key Items/References
(1)
Turn the engine into the TDC position.
To find the engine position in
reference to the TDC position, an
indicator scale is attached at the belt
pulley at the rear end of the engine.
The engine is in the TDC position
when the mark near the “OT” is at
the pointer on the crankcase.
Chain length not ok
Chain length ok
Red Indicator Rings
Aluminium seal
