E4 Series
Maintenance Manual
Reciprocating
Engine
E4.08.04
Rev. 29
Page 313
85-Maintenance Procedures
01-Jul-2020

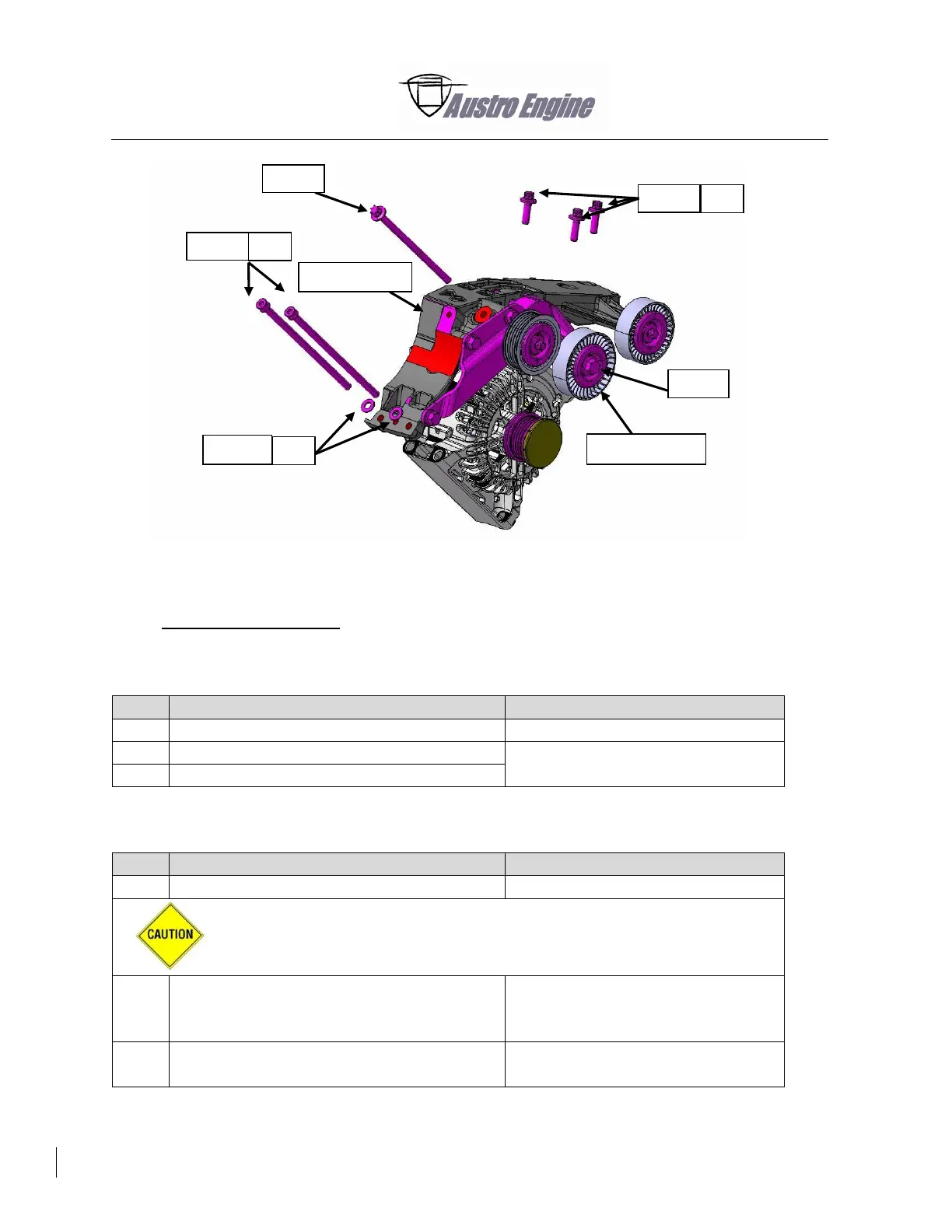

Fig. 85 - 135 Belt tensioner
3. Belt Tensioner – Roller
A. Remove the Belt Tensioner – Roller
Detail Steps/Work Items
Key Items/References
(1)
Remove the V-Ribbed belt.
Refer to Paragraph 1.A.
(2)
Remove the screws from the roller.
Refer to Fig. 85 - 136.
(3)
Remove the roller.
B. Install the Belt Tensioner – Roller
Detail Steps/Work Items
Key Items/References
(1)
Install a new roller.
When using Loctite, make sure that the thread is free of grease.
Apply a thin film of Loctite.
(2)
Tighten the screws on the idler pulleys.
Torque 25 Nm.
Apply Loctite 243.
Refer to Fig. 85 - 136.
(3)
Tighten the screw on the tensioner pulley.
Torque 67 Nm.
Apply Loctite 243.
Screw
15
V-belt tensioner
Screw
3x
15
Tensioner pulley
Screw
15
2x
15
Screw
15
Washer
2x
15
