K. Gearbox Oil
General gearbox oil information
Oil type:
Shell Spirax GSX 75W-80
Oil volume:
2.3 l
Refer to Section 12-10-00 for gearbox oil level check instructions.
(a) Drain the gearbox oil
Refer to Paragraph E Step (2) to (5) for gearbox oil drain instructions.
(b) Fill the gearbox oil
Detail Steps/Work Items
Key Items/References
(1)
Install the magnetic drain plug.
Refer to Paragraph F.
(2)
Fill the gearbox oil up to the inspection
window.
Approx. 1.8 l
(3)
Do an engine ground run with more than
1800 rpm to fill the A/C gearbox oil system.
(4)
Fill the gearbox oil up to the inspection
window.
For latest Gearbox (rev. 100 and higher) a total quantity of 2.3 l oil is
required.
(5)
Secure the gearbox filler plug with lock-wire.
Refer to Fig. 85 - 36.

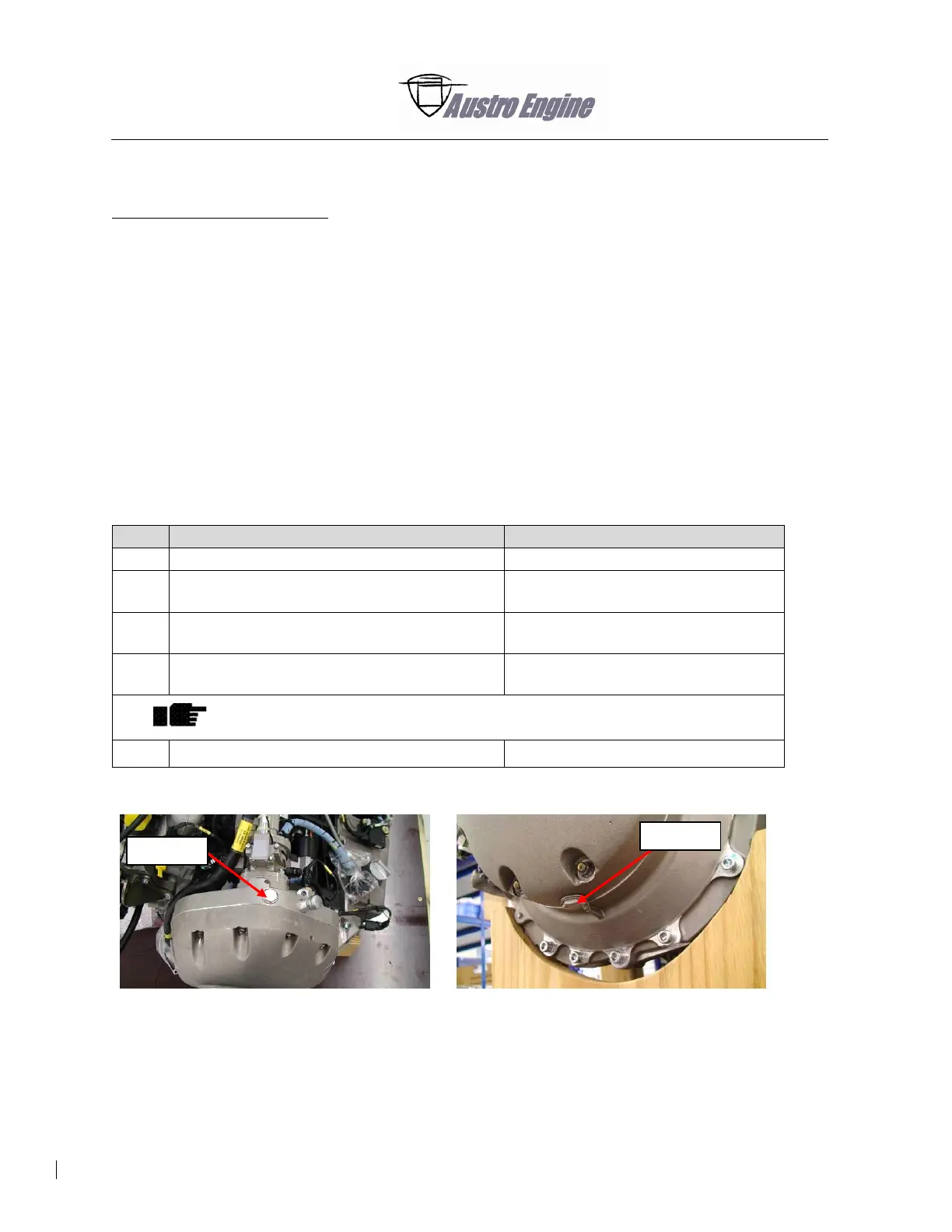

Fig. 85 - 36 Filler plug
Fig. 85 - 37 Drain plug
Filler plug
Drain plug
