Austro Engine E4 Series User Manual

E4 Series
Maintenance Manual
Reciprocating
Engine
Page 286
E4.08.04
Rev. 29
85-Maintenance Procedures
01-Jul-2020
(k) Remove the cylinder head sub-assembly from the crankcase
Detail Steps/Work Items
Key Items/References
(1)
Remove the 4 screws from the cylinder head.
Refer to Fig. 85 - 108.
(2)
Remove the 10 screws on the cylinder head cover
from the outside to the inside.
Refer to Fig. 85 - 109 for the
removal sequence.
(3)
Remove the cylinder head and the cylinder head
gasket from the crankcase.
Discard the cylinder head gasket.
Refer to Fig. 85 - 108.

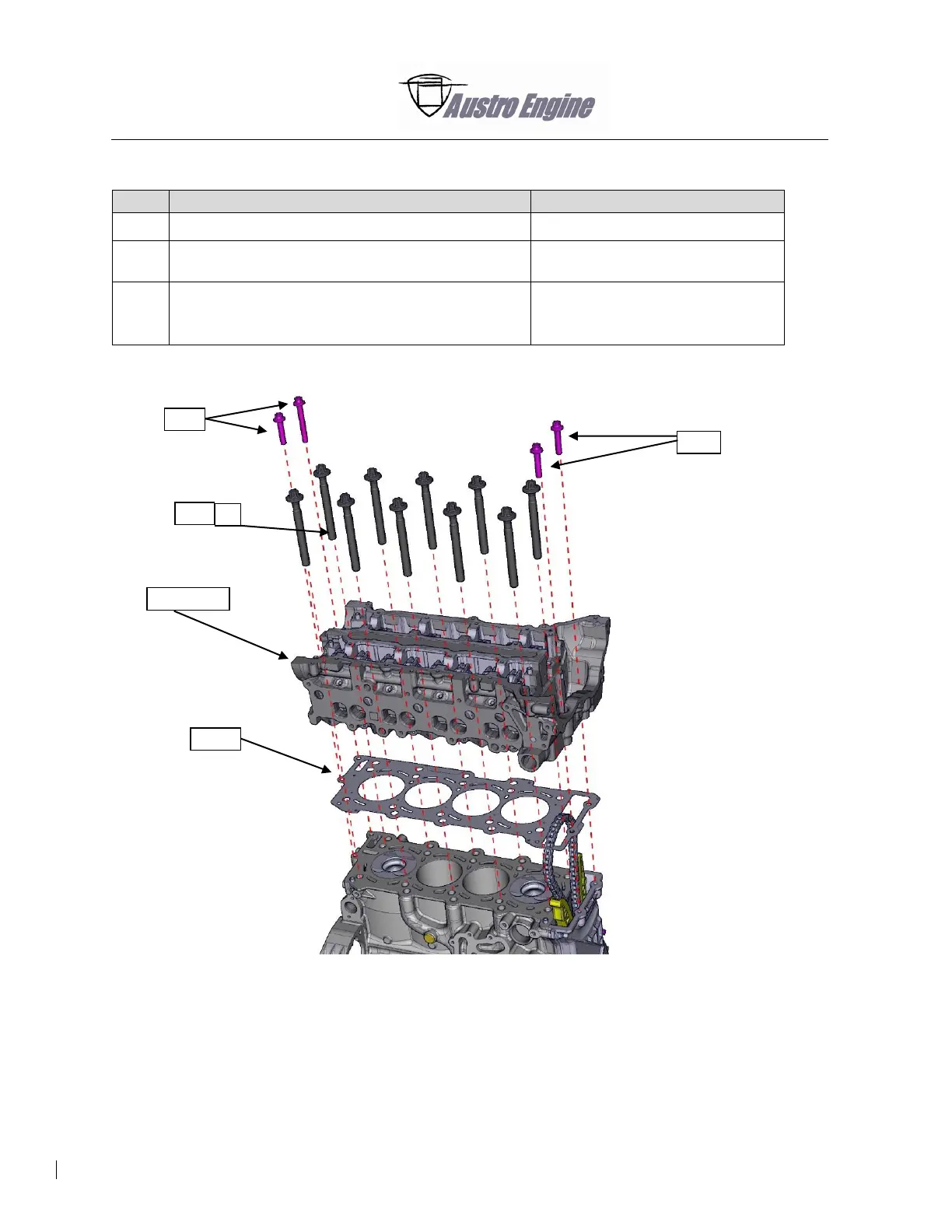

Fig. 85 - 108 Cylinder head sub-assembly removal
Screw
Cylinder head
Gasket
10x
Screw
Screw
