Austro Engine E4 Series - Install the Spur Gear from High Pressure Pump

E4 Series
Maintenance Manual
Engine Fuel
System
E4.08.04
Rev.29
Page 217
73 - Maintenance Procedures
01-Jul-2020

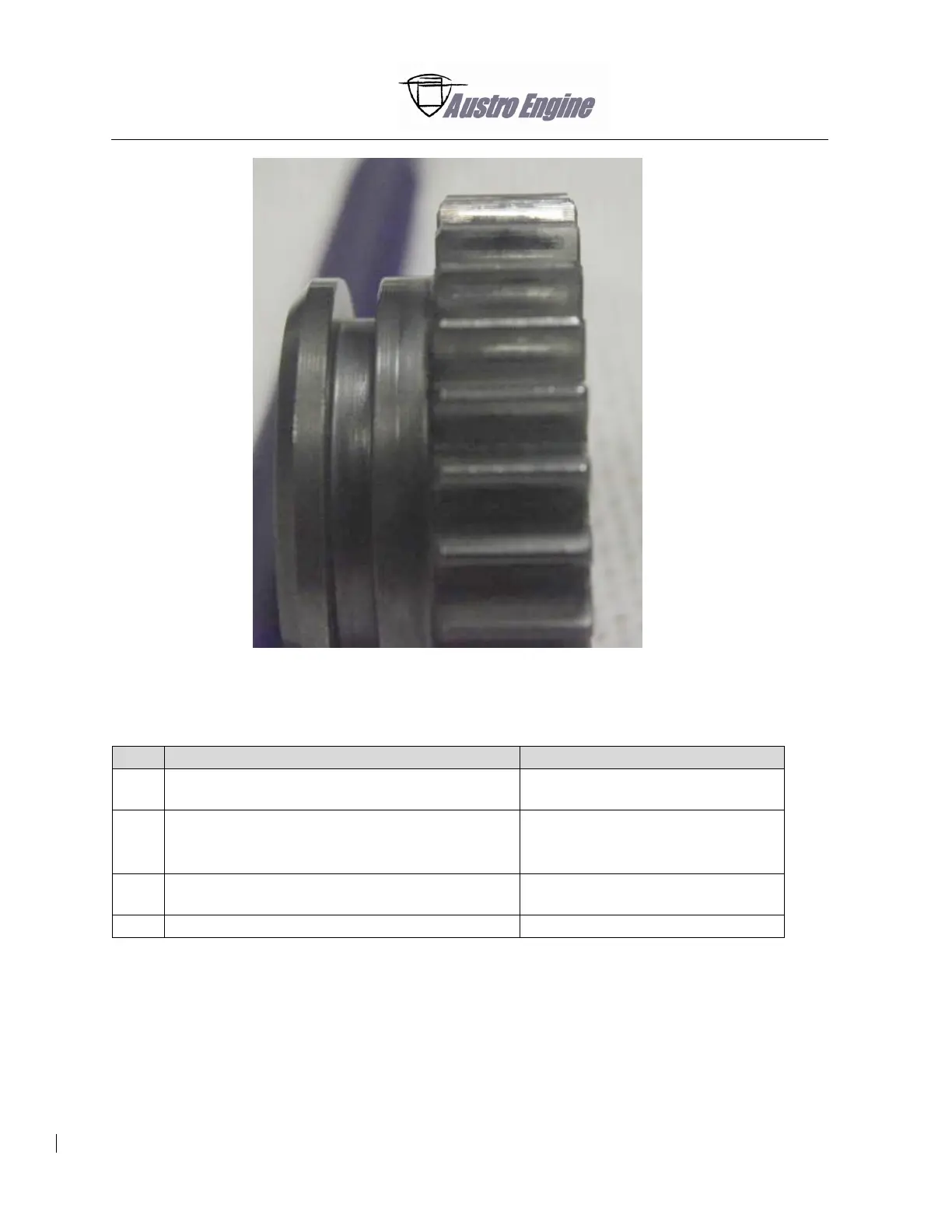

Fig. 73 - 19
D. Install the spur gear from High Pressure Pump
Detail Steps/Work Items
Key Items/References
(1)
Put the spur gear onto the drive shaft of the
high pressure pump.
Refer to Fig. 73 - 18.
(2)
Tighten the hexagon nut.
Examine the fit of the spur gear.
Torque 70 Nm.
Use the counter torque wrench
AE300T-012-1 or AEP-00379-000.
(3)
Examine the sealing ring at the high pressure
pump for damage or poor condition.
Refer to Fig. 73 - 18.
(4)
Install the high pressure pump.
Refer to Step B.
