Austro Engine E4 Series User Manual

E4 Series
Maintenance Manual
Reciprocating
Engine
Page 284
E4.08.04
Rev. 29
85-Maintenance Procedures
01-Jul-2020
(h) Remove the camshafts
Detail Steps/Work Items
Key Items/References
(1)
Remove the 7 screws from the camshaft
bearings.
Refer to Fig. 85 - 105.
(2)
Remove the camshaft bearing covers and the
bracket.
(3)
Carefully remove the camshafts.
(4)
Remove the bearing bracket assemblies.

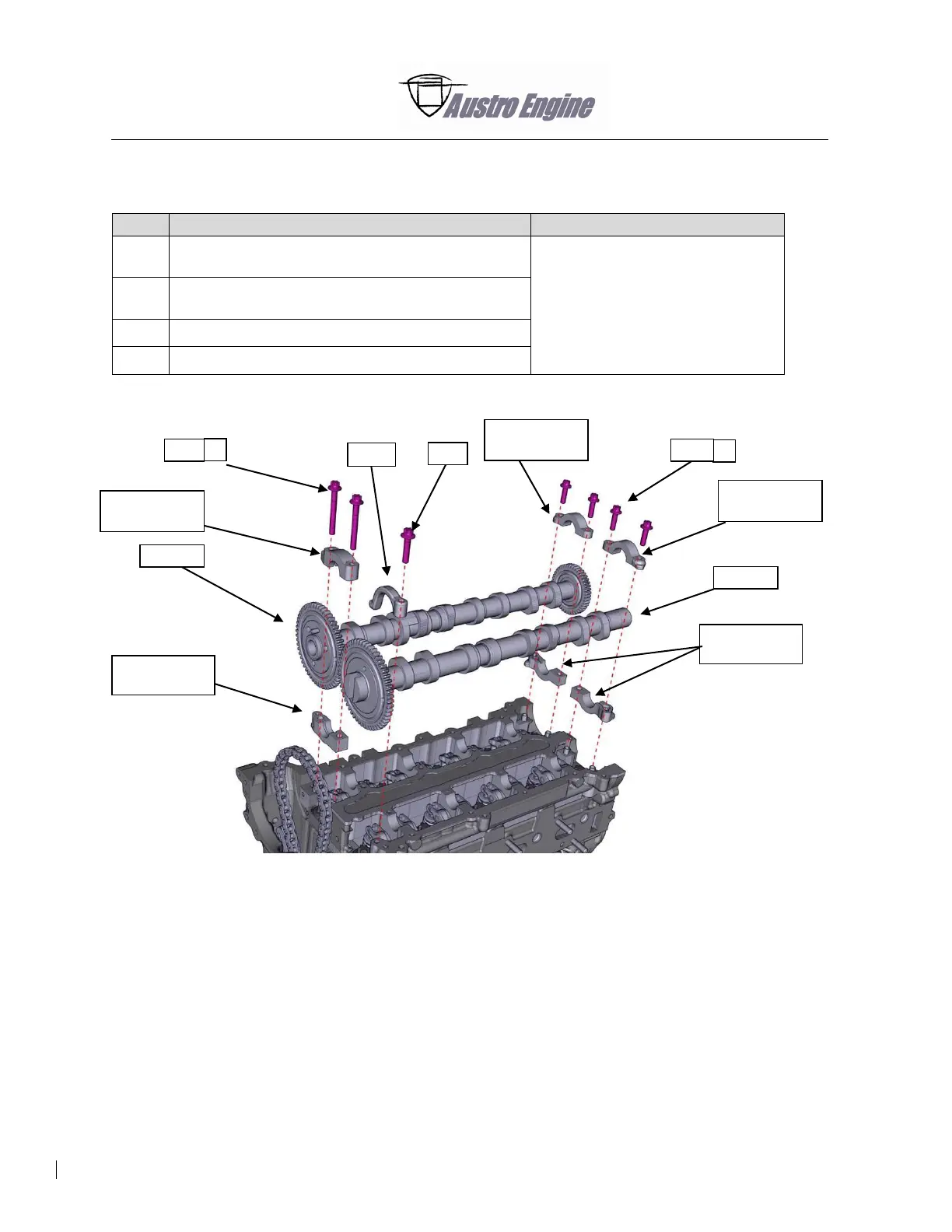

Fig. 85 - 105 Camshafts removal
Camshaft
4x
Screw
2x
Screw
Screw
Camshaft bearing
cover
Bracket
Bearing bracket
assembly
Camshaft bearing
cover
Camshaft bearing
cover
Camshaft
Bearing bracket
assembly
