Austro Engine E4 Series User Manual

E4 Series
Maintenance Manual
Reciprocating
Engine
Page 278
E4.08.04
Rev. 29
85-Maintenance Procedures
01-Jul-2020
(b) Remove the cylinder head cover
Detail Steps/Work Items
Key Items/References
(1)
Remove the screw [01] from the cylinder head
cover.
Refer to Fig. 85 - 98.
(2)
Remove the camshaft position sensor CAS 1
from the cylinder head cover.
Refer to Section 76-10-00 Paragraph
5.A.
(3)
Remove the 16 screws [02] and the 7 screws
[03] from the cylinder head cover.
Refer to Fig. 85 - 98.
(4)
Remove the cylinder head cover with the inner
and the outer seal from the engine.

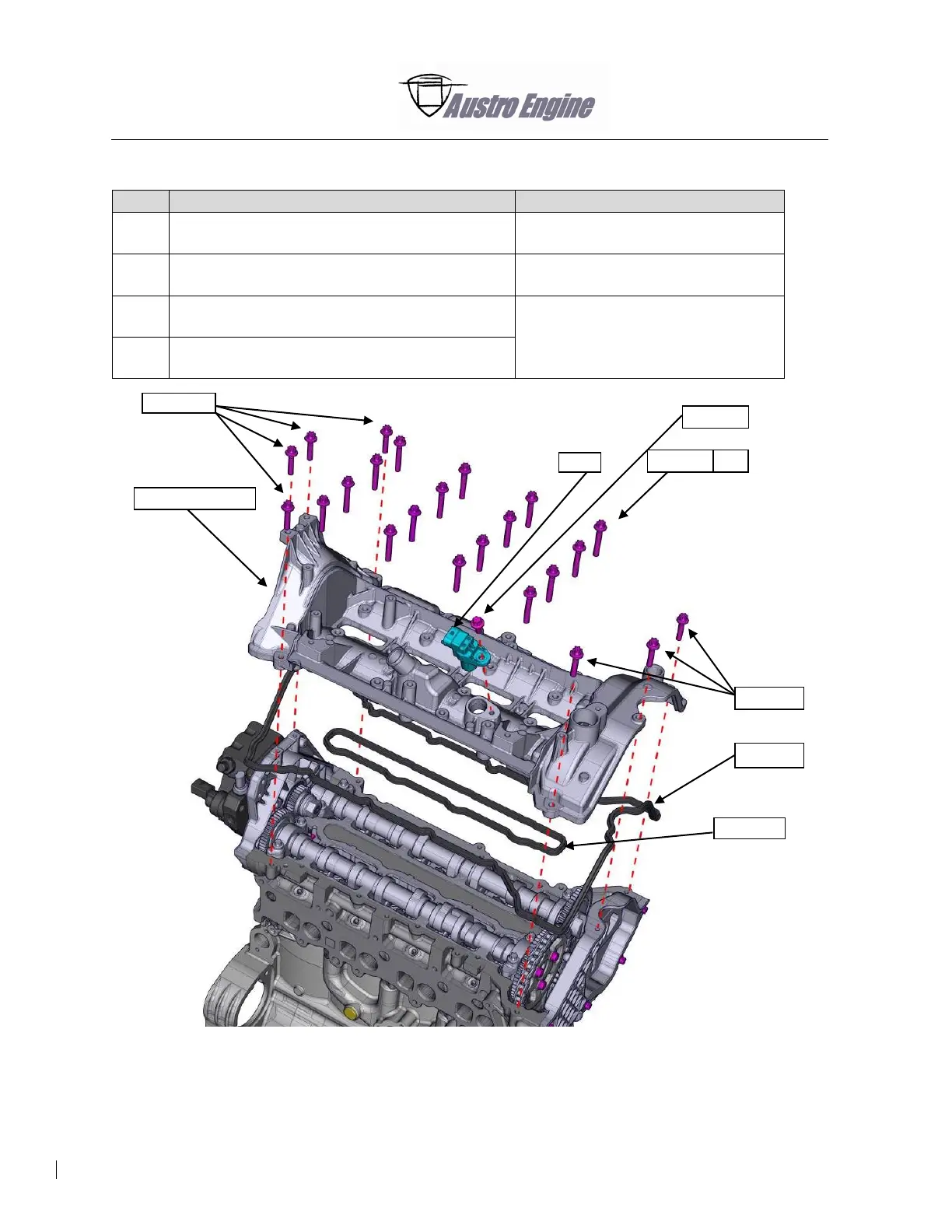

Fig. 85 - 98 Cylinder head cover removal
16x
Screw [02]
Cylinder head cover
Screw [03]
CAS 1
Screw [03]
Screw [01]
Outer seal
Inner seal
