E4 Series

Maintenance Manual

Standard

Procedures

Page 212

E4.08.04

Rev.29

70 - Maintenance Procedures

01-Jul-2020

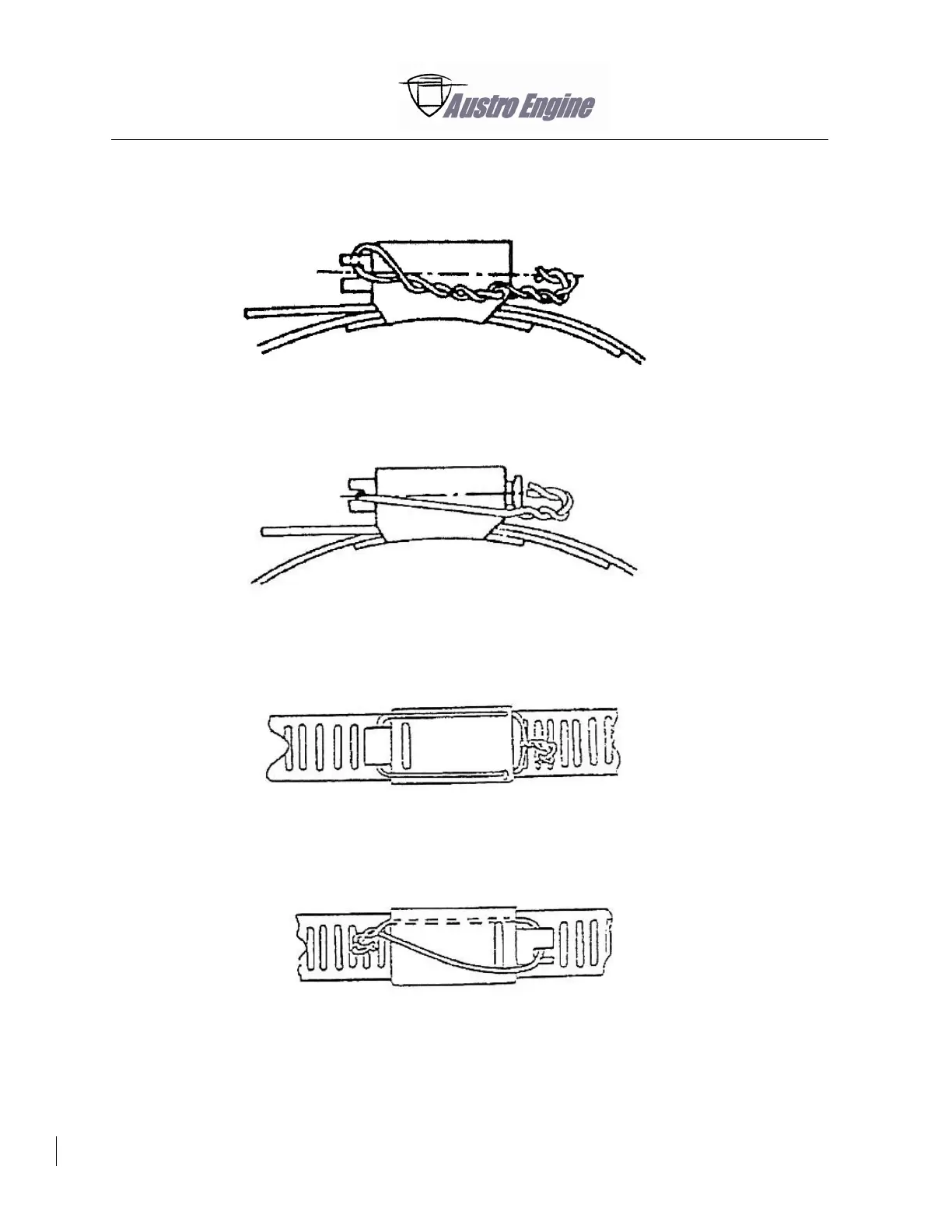

Examples for wire locking on tensioning clamps:

Fig. 70 - 11 Double-twist method with holes in clamp screw and housing

Fig. 70 - 12 Single wire method (no locking holes are available)
