E4 Series

Maintenance Manual

Standard

Procedures

Page 216

E4.08.04

Rev.29

70 - Maintenance Procedures

01-Jul-2020

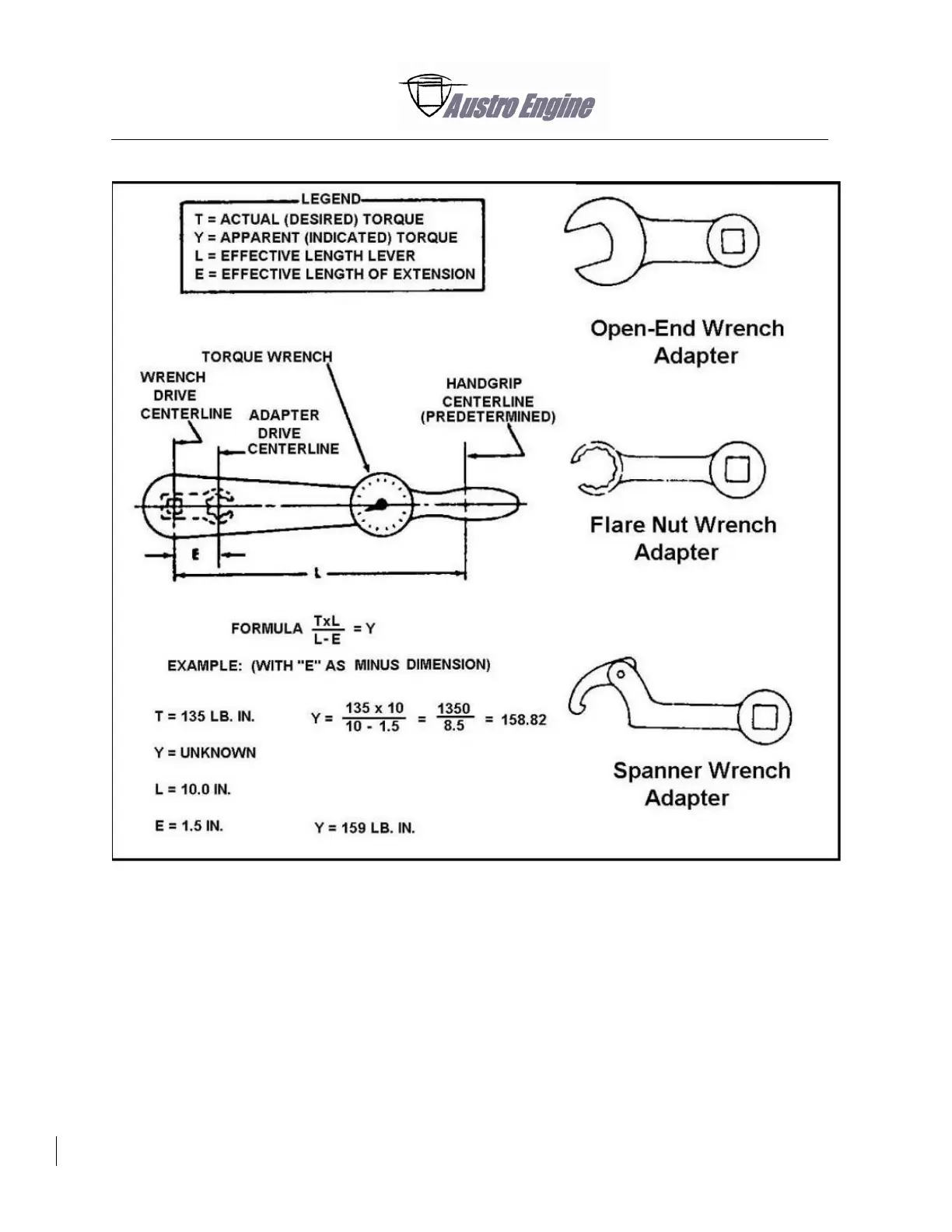

Fig. 70 - 14 Torque wrench with different adapters
