Austro Engine E4 Series

To Next Page

To Previous Page

E4 Series

Maintenance Manual

Power Plant

E4.08.04

Rev. 29

Page 251

71 -Maintenance Procedures

01-Jul-2020

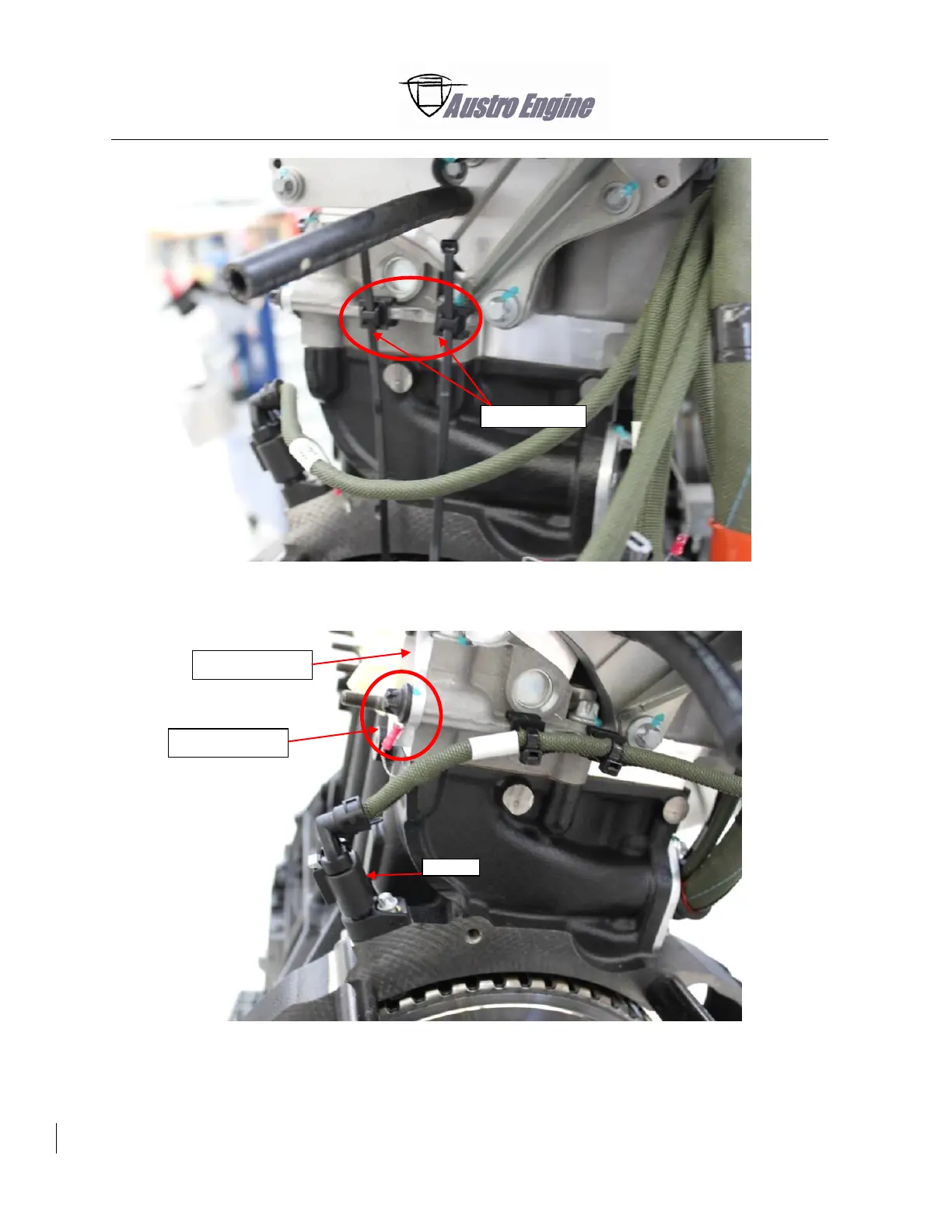

Fig. 71 - 65 CRS1 branch attachment

Fig. 71 - 66 CRS1 pigtail connection

Edge clip [08]

Pigtail CRS1

CRS1

EGR Cover
