76 – System Description
01-Jul-2020
Governor Interface:
This EECU is able to operate the electric motor which changes the governor-set point.
According to power lever position the EECU controls the related propeller speed.
As long as the actual propeller speed is different to the predefined propeller set point curve, the EECU
provides a signal to drive the electric motor which is part of the governor.
The necessary engine speed for low power is only reachable in flight.
Propeller Setpoint Curve engine model E4:

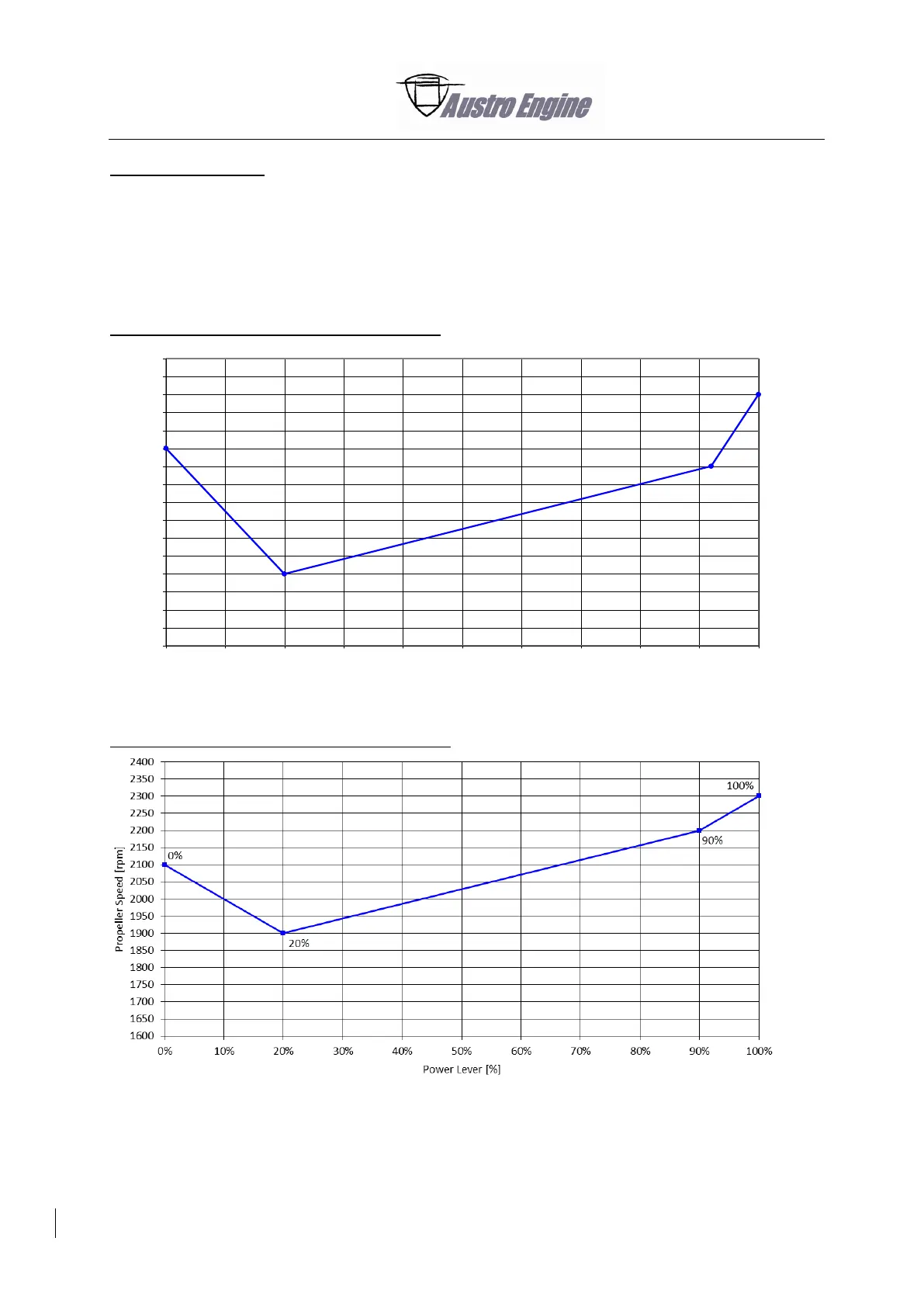

Fig. 76 - 6 Propeller Setpoint Curve engine model E4
Propeller Setpoint Curve engine model E4P:
Fig. 76 - 7 Propeller Setpoint Curve engine model E4P
Propeller Setpoint Curve
VC31 Baseline 01
0%
100%
92%
20%
1600
1650
1700
1750
1800
1850
1900
1950
2000
2050
2100
2150
2200
2250
2300
2350
2400
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
Power Lever [%]
Propeller Speed [rpm]
