Austro Engine E4 Series User Manual

E4 Series
Maintenance Manual
Engine Exhaust
System
E4.08.04
Rev.29
Page 203
78 - Maintenance Procedures
01-Jul-2020

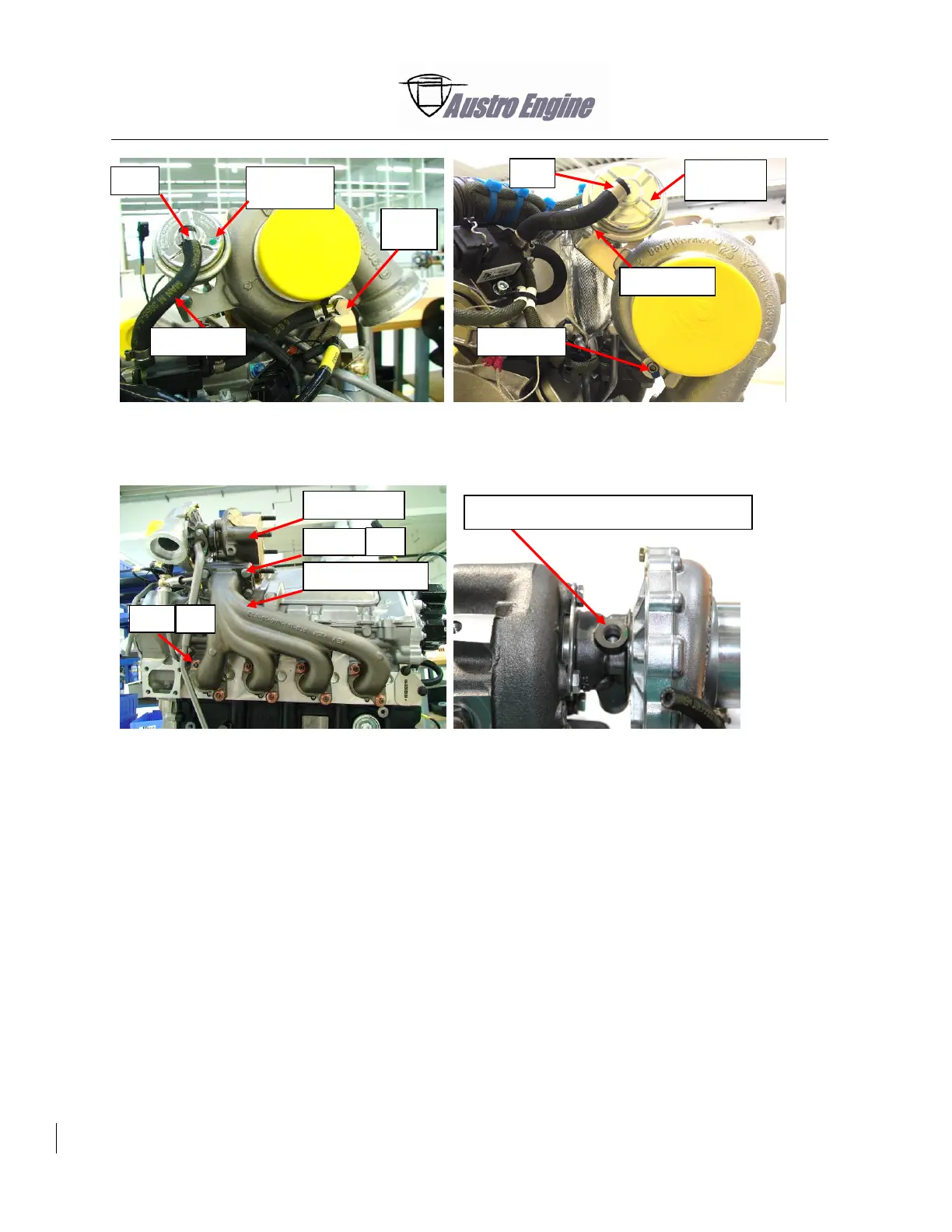

Fig. 78 - 1: Discontinued hose routing
with banjo connection
Fig. 78 - 2: Latest version with grub
screw
Fig. 78 - 3
Fig. 78 - 4
Clip
Wastegate
controller
Banjo
bolt
Turbocharger
Screw
Exhaust Manifold
4x
5
Nut
8x
5
Clip
Wategate
controller
Grub screw
Fill with approx. 1 cm³ engine oil
Pick-up hose
Pick-up hose
