Austro Engine E4 Series User Manual

E4 Series
Maintenance Manual
Engine Oil
System
E4.08.04
Rev. 29
Page 219
79-Maintenance Procedures
01-Jul-2020
Detail Steps/Work Items
Key Items/References
(2)
Push the oil line in the injector cover.
Tighten the screw.
Refer to Fig. 79 - 17.
(3)
Tighten the banjo bolt at the camshaft sensor
housing with new sealing rings.
Torque 15 Nm.
For Cylinder Head Version 2 (Refer to Section 85-30-00 Paragraph 4 for
description), install the modified oil separator return line:
Tighten the banjo bolt at the cylinder head cover with new sealing rings.
Torque 15 Nm. Refer to Fig. 79 - 16.
(4)
Secure the banjo bolt at the camshaft sensor
housing with lock-wire.
Refer to Fig. 79 - 15.
(5)
Clean the working area.
(6)
Do an engine ground run.
Refer to Section 71-00-01.
(7)
Examine the oil system for leakage.

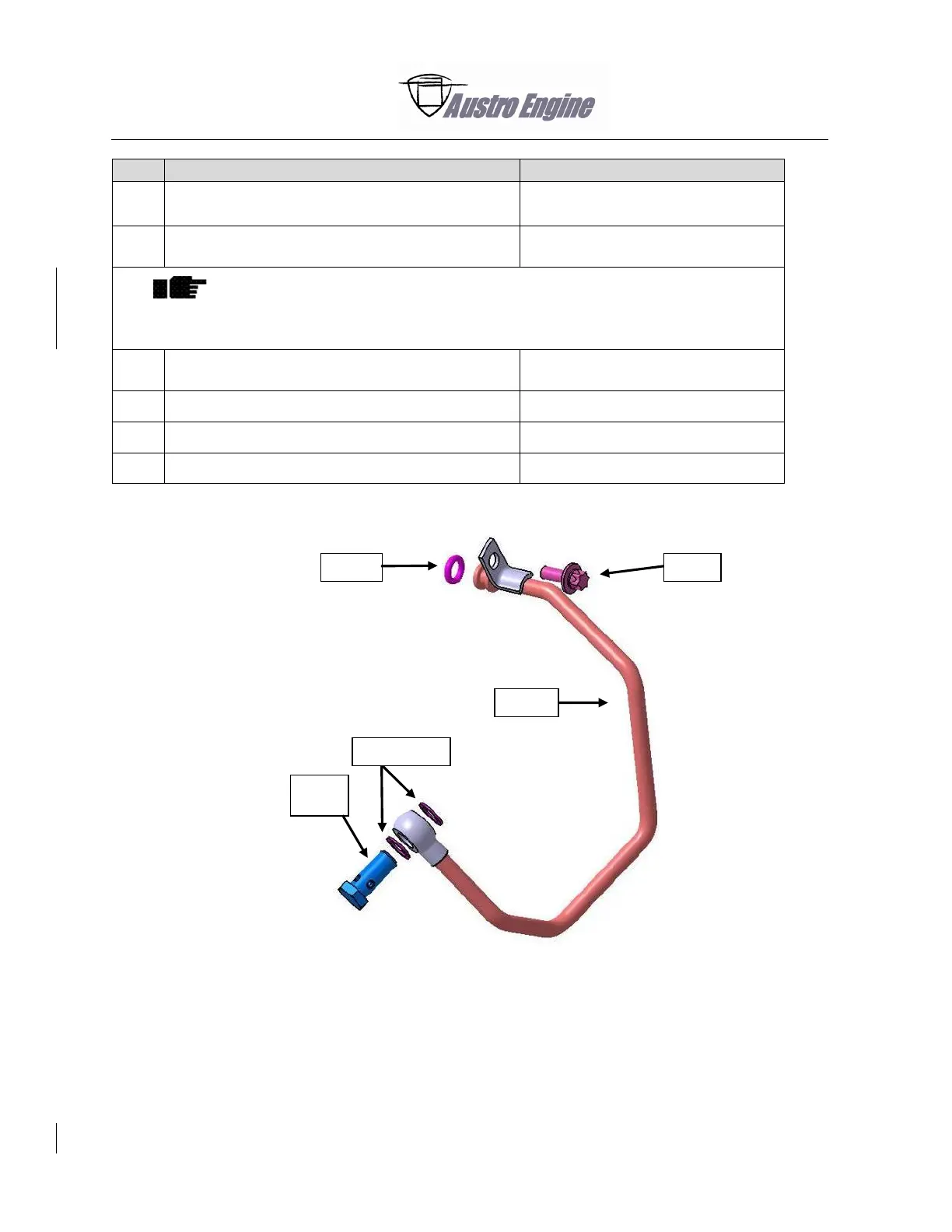

Fig. 79 - 14 Oil separator return line- exploded view
O-Ring
Oil line
Banjo
bolt
Screw
Sealing rings
