E4 Series

Maintenance Manual

Engine Oil

System

E4.08.04

Rev. 29

Page 235

79-Maintenance Procedures

01-Jul-2020

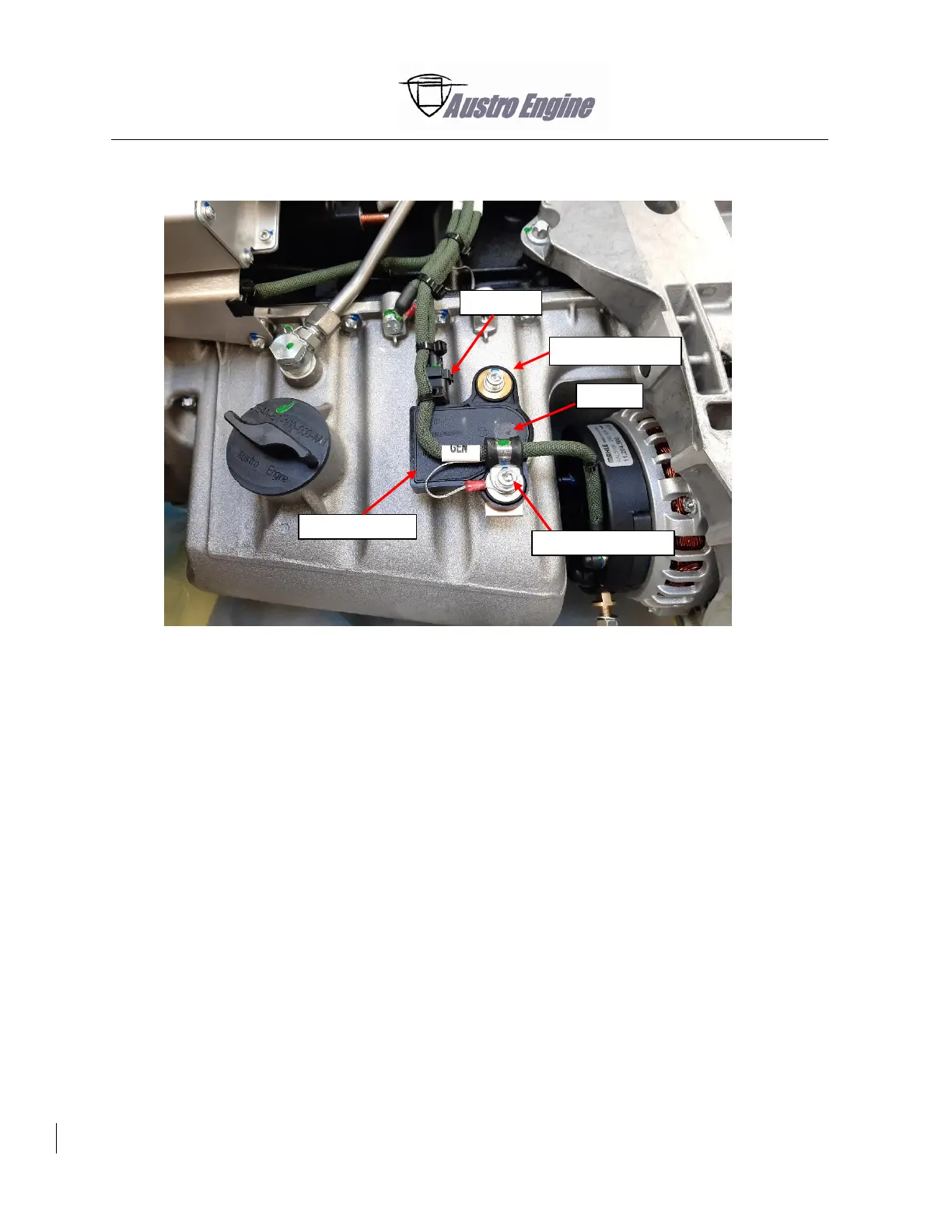

Fig. 79 - 30 Oil level sensor

Oil Level Sensor

Screw with washer

Clamp

Screw with washer

Connector
