E4 Series

Maintenance Manual

Reciprocating

Engine

E4.08.04

Rev. 29

Page 267

85-Maintenance Procedures

01-Jul-2020

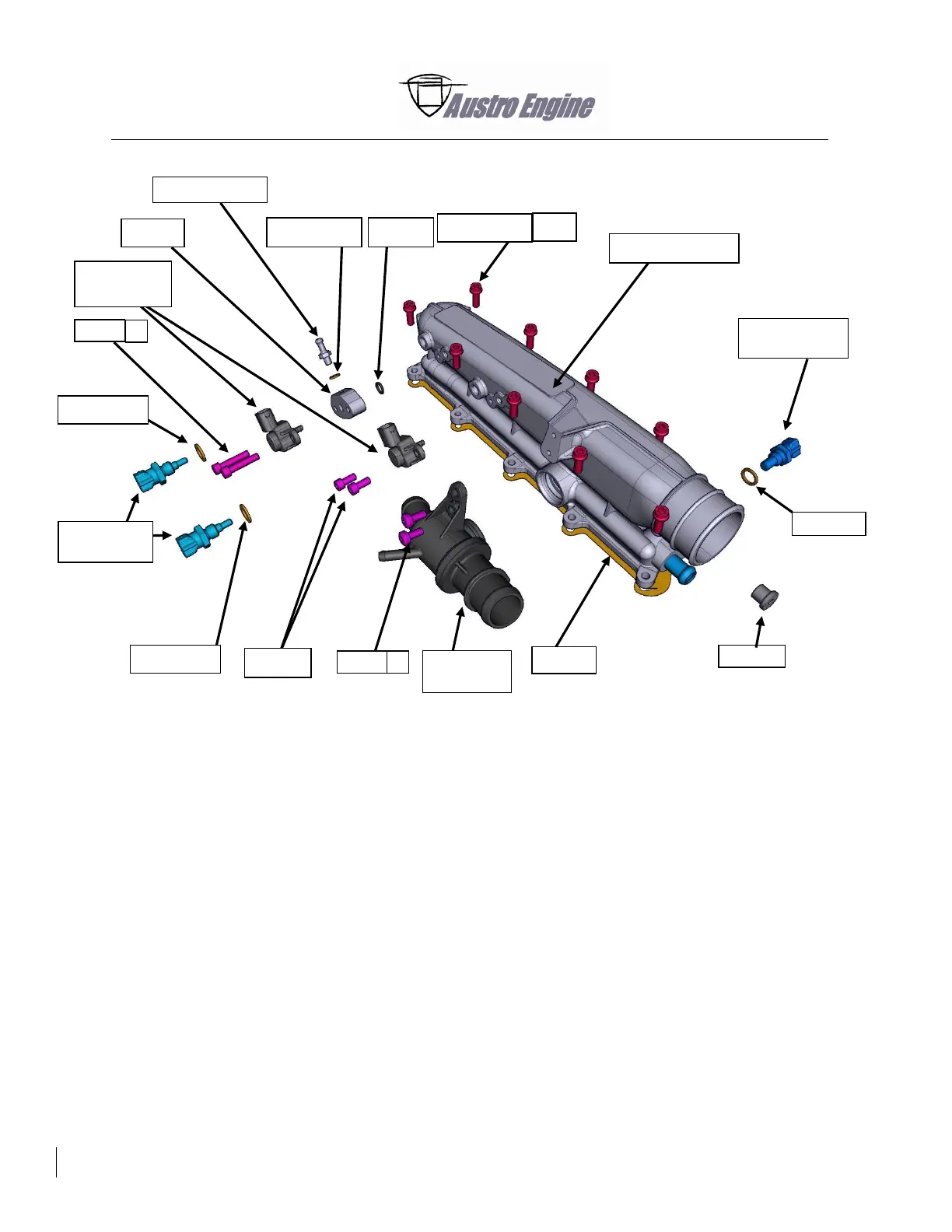

Fig. 85 - 93 Exploded view of Intake Air Manifold (Configuration A) with optional

gearbox oil cooler installation

Sealing ring

Plug screw

Screw

Intake Air Manifold

Collar screw

O-Ring

Sealing ring

Spacer

Hose connection

Pressure

sensor (BPS)

Temp.

Sensor (IAT)

Sealing ring

Screw

Coolant

thermostat

Gasket

Temp. Sensor

(CTS)
