E4 Series

Maintenance Manual

Reciprocating

Engine

E4.08.04

Rev. 29

Page 295

85-Maintenance Procedures

01-Jul-2020

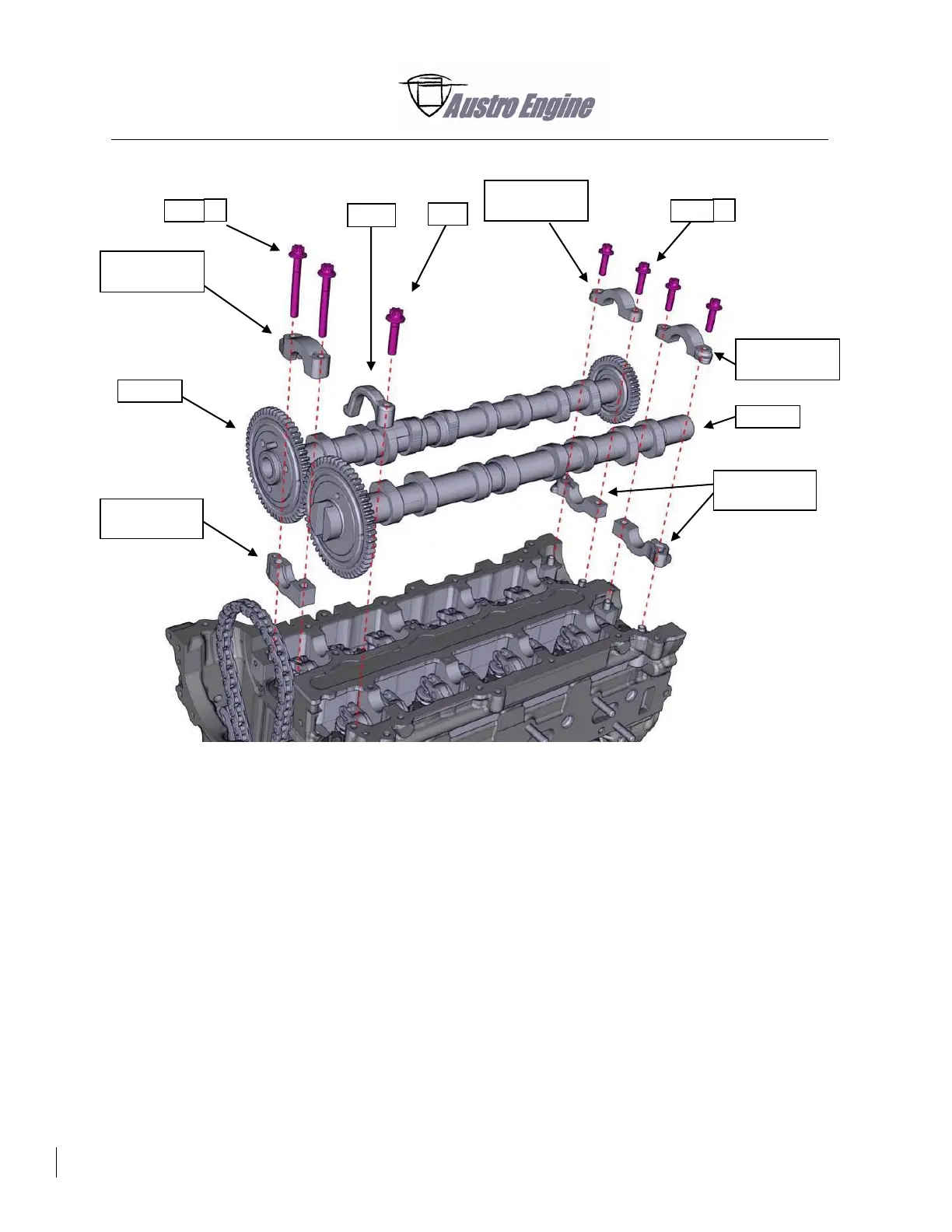

Fig. 85 - 116 Camshafts installation

Camshaft

Screw

Camshaft bearing

cover

Bracket

Bearing bracket

assembly

Camshaft bearing

cover

Camshaft bearing

cover

Camshaft

Bearing bracket

assembly
