Austro Engine E4 Series User Manual

E4 Series
Maintenance Manual
Reciprocating
Engine
Page 326
E4.08.04
Rev. 29
85-Maintenance Procedures
01-Jul-2020
Detail Steps/Work Items
Key Items/References
(20)
Do the same riveting procedure for the
second pin.
(21)
Remove the chain closing tool.
(22)
Complete a check of the pin head riveting.
Refer to Fig. 85 - 152.
(23)
Remove the chain guiding bar.
(24)
Clean the surfaces of the shell and camshaft.
(25)
Assemble the bearing surfaces of the
camshaft and bearing shell.
Use fresh oil.
(26)
Tighten the screws on the bearing shell
equally.
Tightening torque 12 Nm (106 inch-
lbs)
Turn the engine carefully. If a stop or resistance occurs, turn the engine
back and do the timing setting check again.
(27)
Turn the engine two or three times and do a
check of the cam timing setting.
Refer to Paragraph (c).
Turn the engine clockwise (flight
direction).

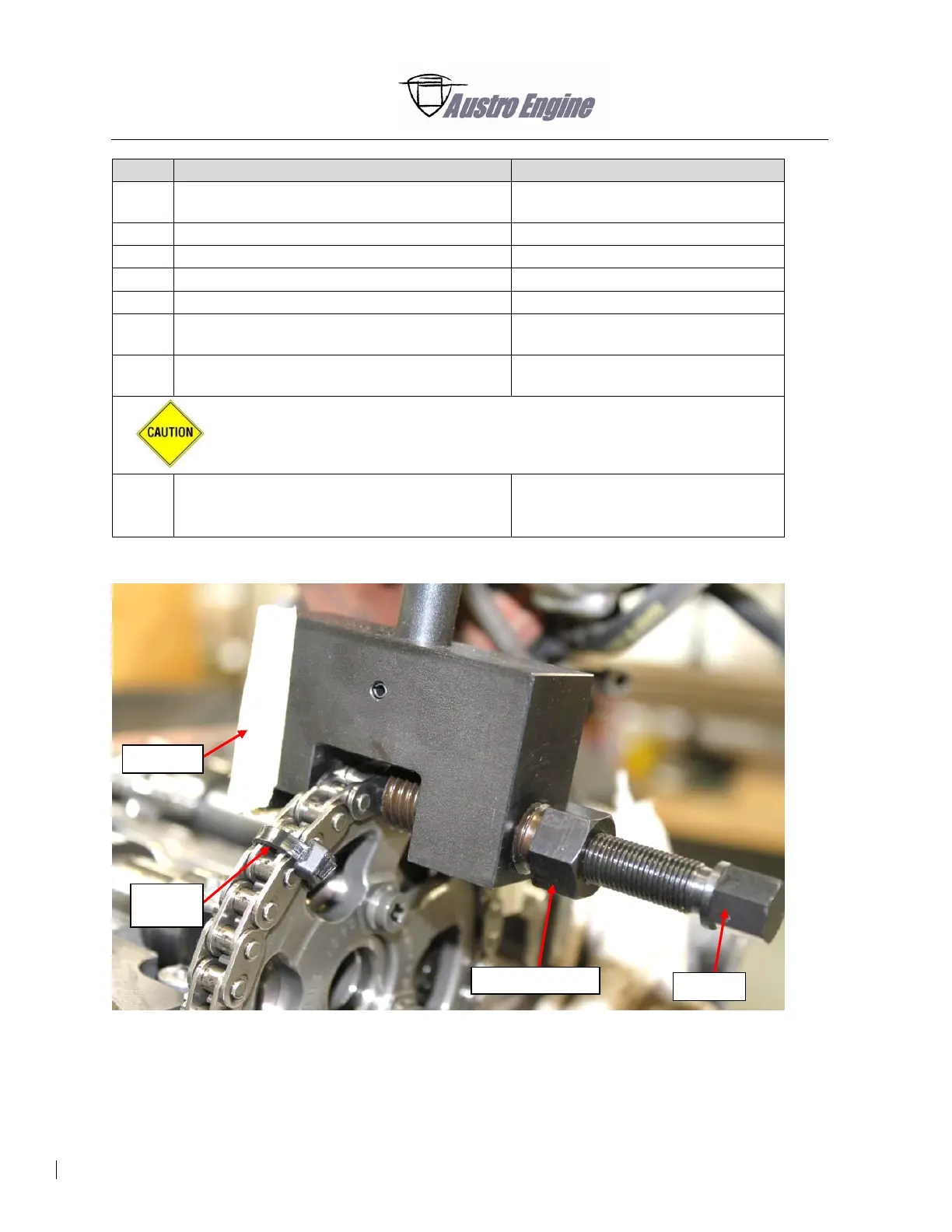

Fig. 85 - 145 Position of the chain opening tool at the chain wheel
spindle
Positioning screw
Duct tape
Cable
retainer
