Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

Installing a hot-plug PSU

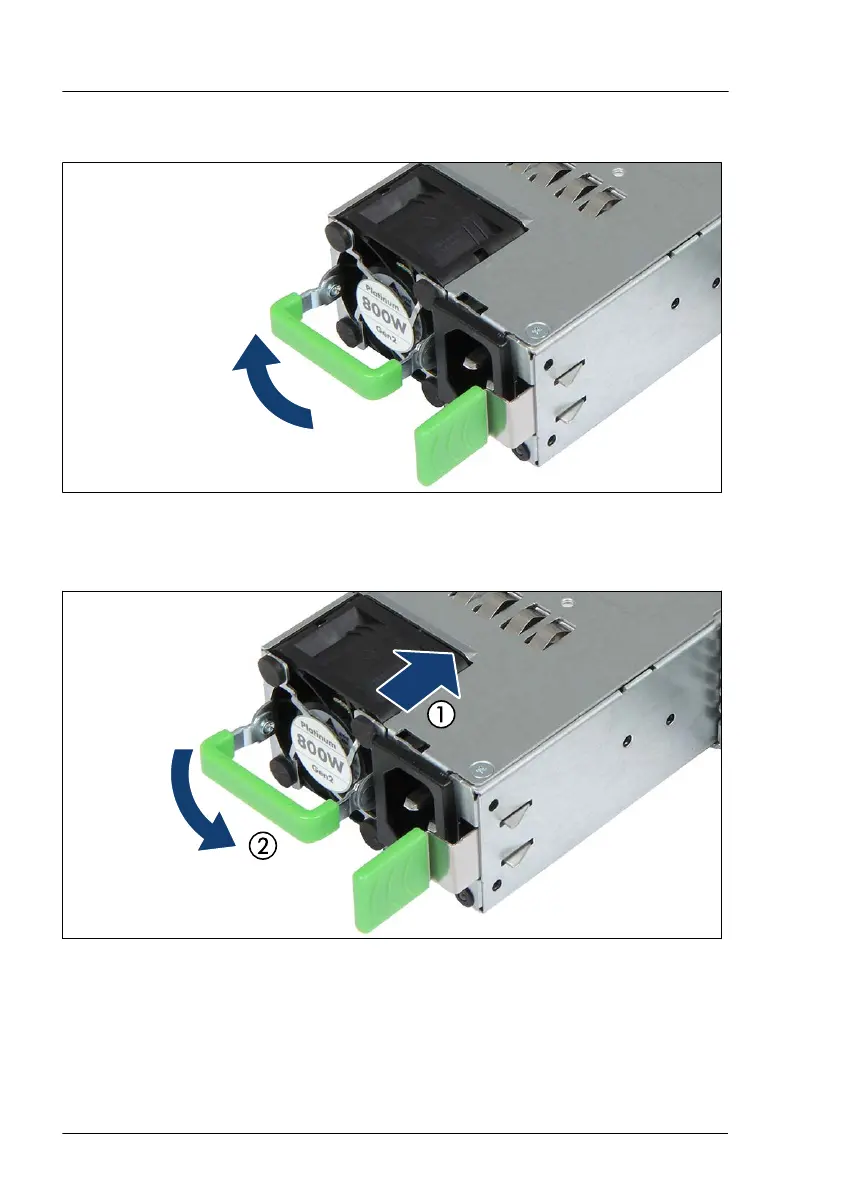

Figure 42: Folding up the handle
▶
Push the handle of the PSU halfway upward in the direction of the arrow.
Figure 43: Installing the PSU
▶
Push the PSU into its bay (1) as far as it will go until the release latch snaps
in place.
▶
Fold down the handle on the PSU (2).
Power supply unit (PSU)
126 Upgrade and Maintenance Manual RX2540 M6

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
