Fujitsu PRIMERGY RX2540 M6 - PYR254 6 R2 N;PYR2546 RCN +PYBBA24 PF;PY-BA24 PF+PYBBA22 P2;PY-BA22 P2(TYP E3-8): Data 16 Xsas;Sata 2.5 Dual RAID (Cp;Ep5 Xxi) X2+Rear 4 X;6 X Nvme (Retimer)

53RX2540 M6
PYR2546R2N/PYR2546RCN+PYBBA24PF/PY-
BA24PF+PYBBA22P2/PY-BA22P2(TYPE3-8):Data 16xSAS/SATA
2.5" Dual RAID (CP/EP5xxi) x2+Rear 4x/6x NVMe (Retimer)

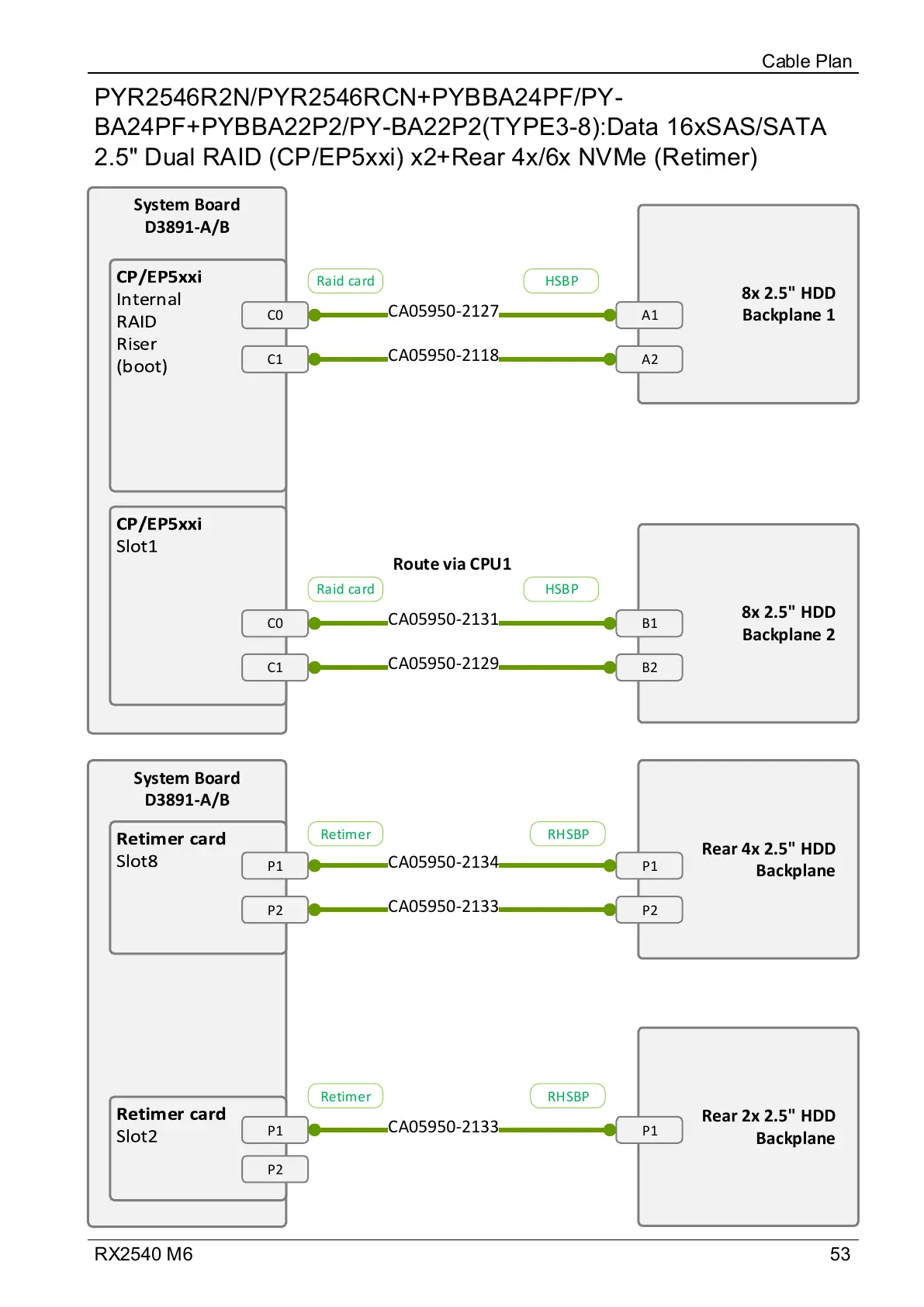

Cable Plan
System Board
D3891-A/B
C0
C1
8x 2.5" HDD
Backplane 1
A1
A2
CA05950-2118
CA05950-2127
8x 2.5" HDD
Backplane 2
B1
B2
C0
C1
CA05950-2131
CA05950-2129
System Board
D3891-A/B
P1
P2
Rear 4x 2.5" HDD
Backplane
P1
CA05950-2134
Rear 2x 2.5" HDD
Backplane
P1
CA05950-2133
P2
P1
P2
CA05950-2133
Raid card HSBP
Raid card HSBP
Retimer RHSBP
Retimer RHSBP
Route via CPU1
