Fujitsu PRIMERGY RX2540 M6

67RX2540 M6
PYR2546RFN+PYBBA24S3/PY-BA24S3+PYBBA22S4/PY-
BA22S4(TYPE4-3b):Data 24xSAS/SATA 2.5"+Rear 4xSAS/SATA
2.5" (EP6x0i)x2

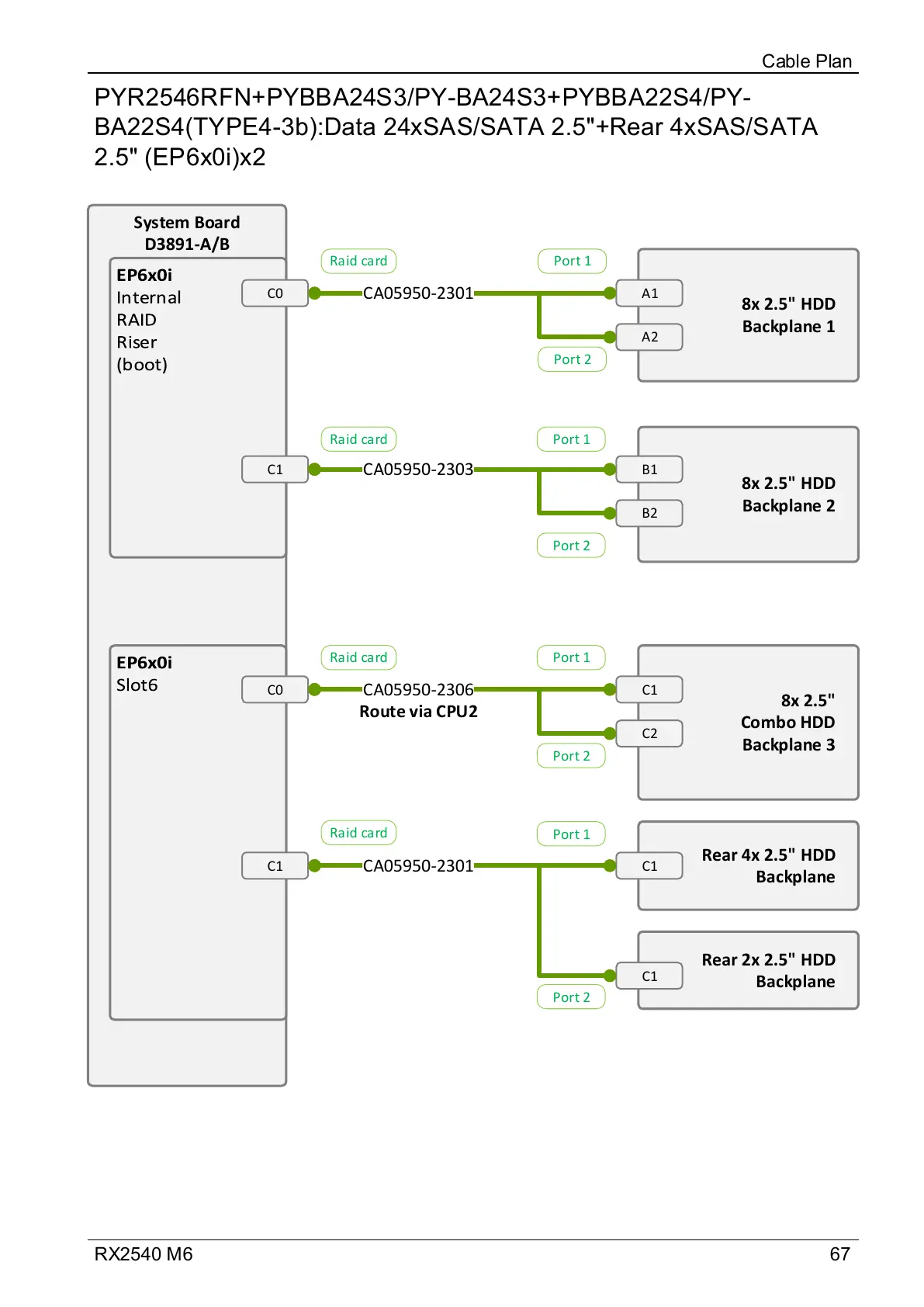

Cable Plan
System Board
D3891-A/B
C0
8x 2.5" HDD
Backplane 1
A1
A2
CA05950-2301
8x 2.5" HDD
Backplane 2
B1
B2
C1
CA05950-2303
8x 2.5"
Combo HDD
Backplane 3
C1
C2
C0
CA05950-2306
Rear 4x 2.5" HDD
Backplane
C1
Rear 2x 2.5" HDD
Backplane
C1
C1
CA05950-2301
Port 1
Port 2
Port 1
Port 2
Port 1
Port 2
Port 1
Port 2
Raid card
Raid card
Raid card
Raid card
Route via CPU2
