95RX2540 M6

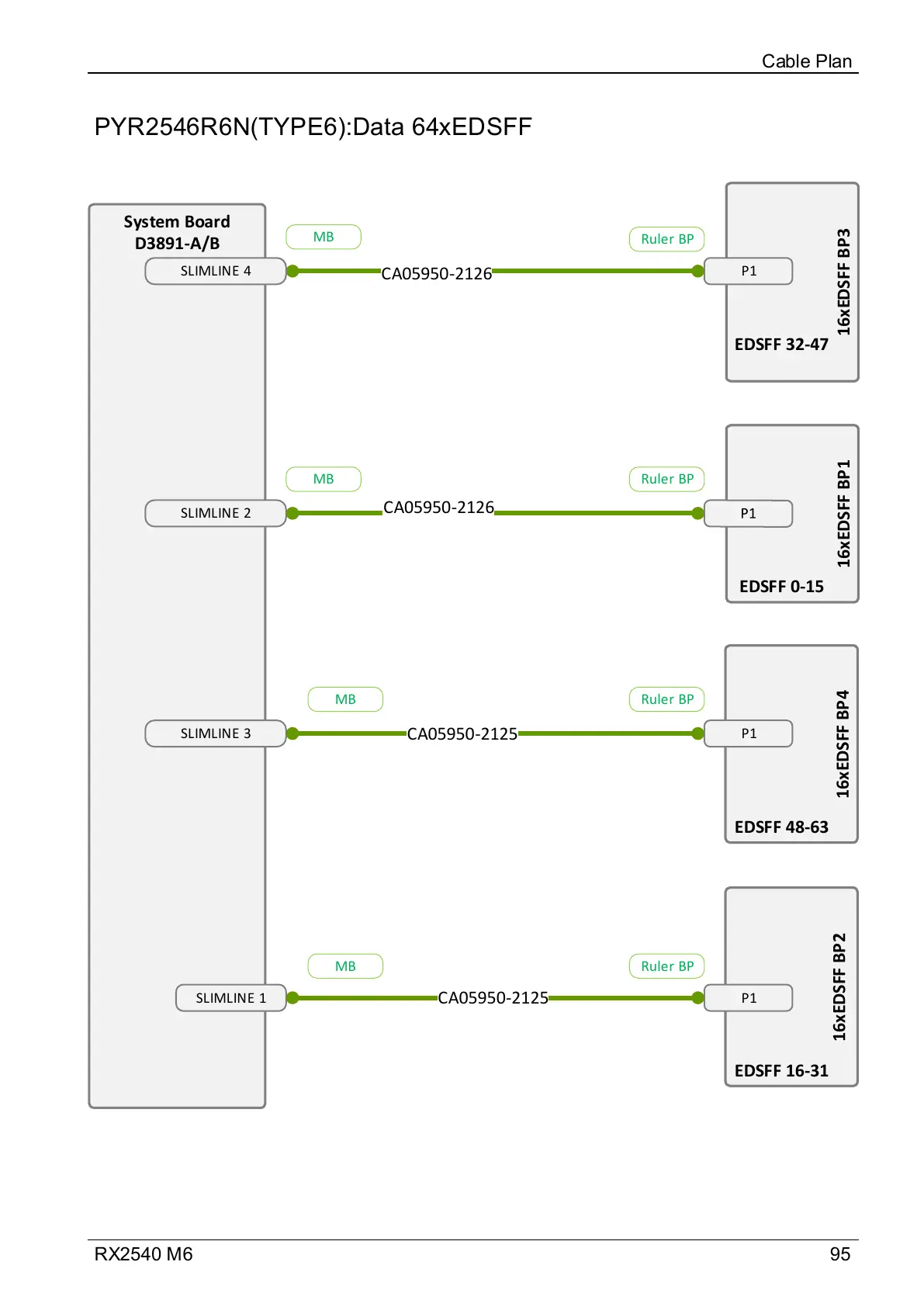

PYR2546R6N(TYPE6):Data 64xEDSFF
Cable Plan
System Board
D3891-A/B
CA05950-2126
SLIMLINE 4
SLIMLINE 2
SLIMLINE 3
SLIMLINE 1
CA05950-2125
CA05950-2126
16xEDSFF BP416xEDSFF BP4
16xEDSFF BP216xEDSFF BP2
16xEDSFF BP116xEDSFF BP1 16xEDSFF BP316xEDSFF BP3
EDSFF 16-31
EDSFF 0-15
EDSFF 32-47
EDSFF 48-63
P1
P1
P1
CA05950-2125
MB Ruler BP
MB Ruler BP
MB Ruler BP
MB
Ruler BP
