Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

Indicator Status Description
H - Memory off memory module running
orange on memory module failure
I - iRMC off iRMC S5 inactive
green flashing iRMC S5 okay
K - System fan off system fan running
orange on system fan failure
L - Battery orange on Battery failure
M - Standby
Power
orange on All standby voltages ok
O - M.2 SSD orange on M.2 SSD faulty
P - LC Pump orange on LC Pump faulty

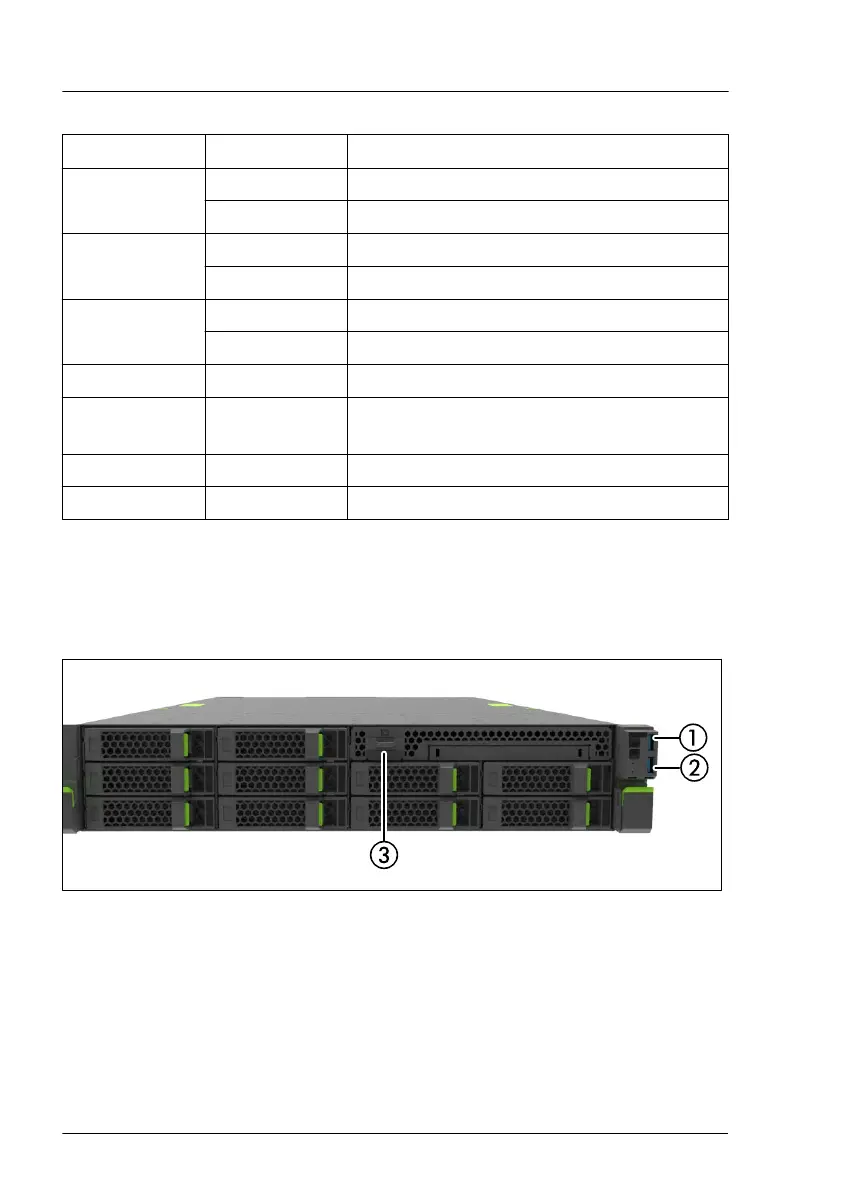

17.2.2 Server front
17.2.2.1 Connectors on the front panel
Figure 380: Connectors on the front panel
1 USB 3.0 connector
2
USB 3.0 connector
3
Front VGA connector
The front VGA connector is an option in some configurations.
Appendix A
548 Upgrade and Maintenance Manual RX2540 M6

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
