Fujitsu PRIMERGY RX2540 M6

54RX2540 M6
PYR2546R2N/PYR2546RCN+PYBBA24PF/PY-BA24PF(TYPE3-
9a):Data 16xSAS/SATA 2.5"+Rear 4xNVMe (EP5x0i)x2

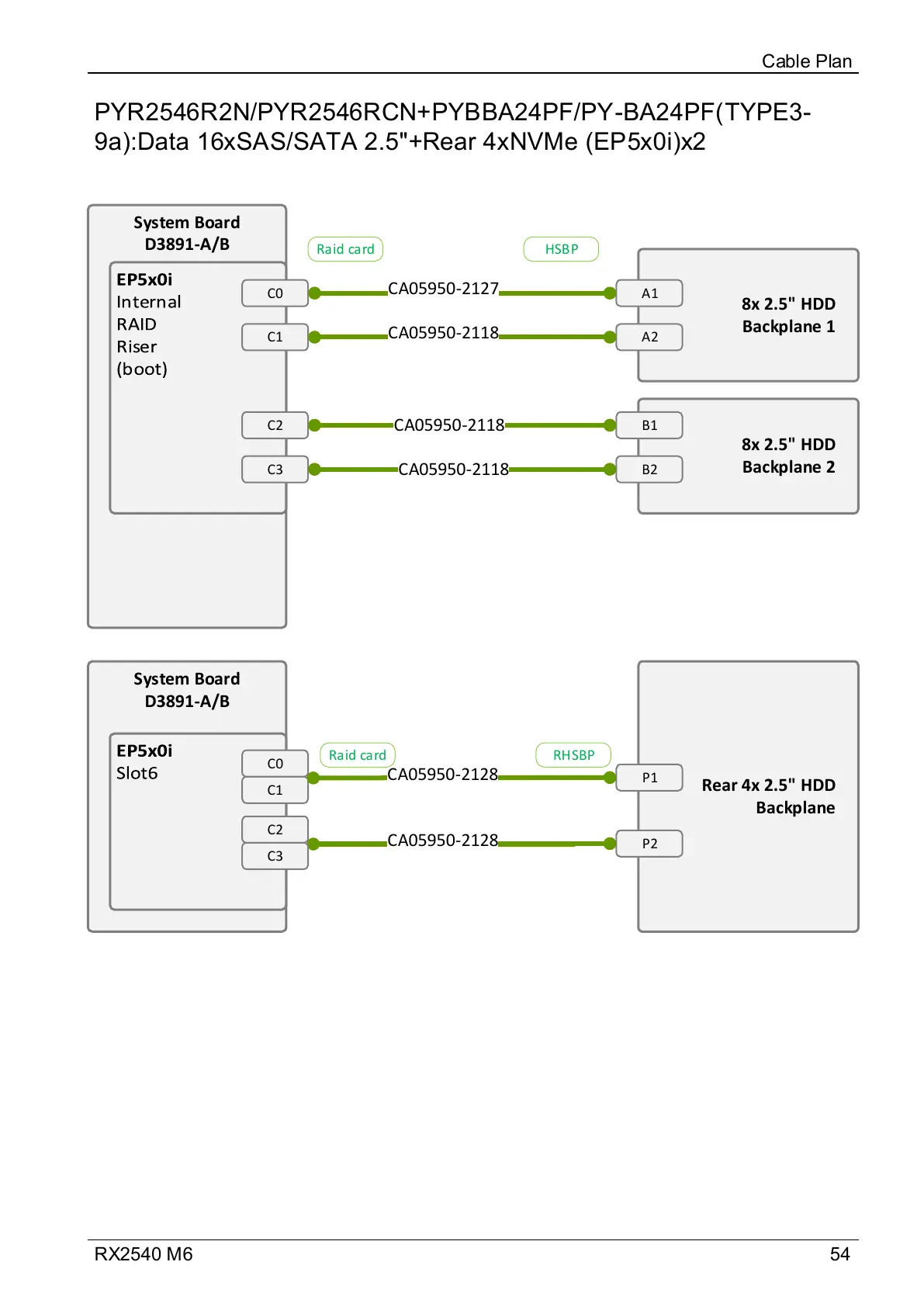

Cable Plan
System Board
D3891-A/B
C0
C1
8x 2.5" HDD
Backplane 1
A1
A2
CA05950-2118
CA05950-2127
8x 2.5" HDD
Backplane 2
B1
B2
C2
C3
CA05950-2118
CA05950-2118
System Board
D3891-A/B
C1
Rear 4x 2.5" HDD
Backplane
P1
CA05950-2128
P2
CA05950-2128
C0
C2
C3
Raid card HSBP
Raid card RHSBP
