Fujitsu PRIMERGY RX2540 M6

75RX2540 M6
PYR2546RFN(TYPE4-9b):Data 16xSAS/SATA 2.5" (EP6x0i)+8x2.5"
NVMe Onboard

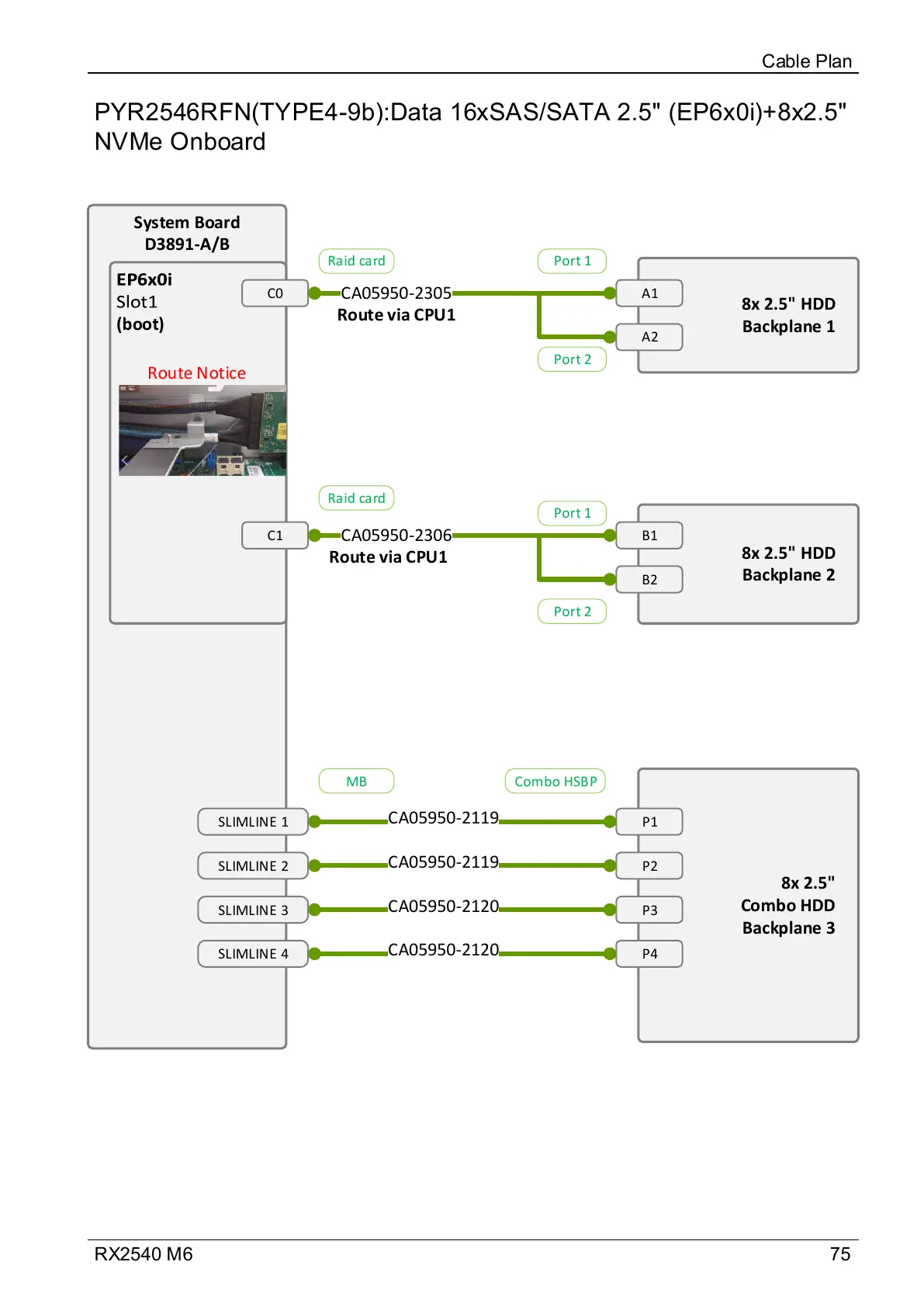

Cable Plan
System Board
D3891-A/B
(boot)
C0
8x 2.5" HDD
Backplane 2
CA05950-2305
8x 2.5"
Combo HDD
Backplane 3
P1
P2
CA05950-2119
CA05950-2119
SLIMLINE 1
SLIMLINE 2
SLIMLINE 3
SLIMLINE 4
P3
P4
CA05950-2120
CA05950-2120
8x 2.5" HDD
Backplane 1
B1
B2
A1
A2
C1
CA05950-2306
Port 1
Port 2
Port 1
Port 2
Raid card
Raid card
MB Combo HSBP
Route via CPU1
Route via CPU1
Route Notice
