Base unit Description
Type 5 Base unit for up to 24x 2.5-inch PCIe SSDs
Type 6 Base unit for up to 64x EDSFF SSDs
7.3 Handling HDDs or SSDs without
installation frame
7.3.1 3.5-inch HDD and 3.5-inch installation frame
Installing or removing the installation frame is only necessary for Japan.
Customer Replaceable
Unit (CRU)
Hardware: 5 minutes
Tools: Phillips PH1 / (+) No. 1 screw driver
Preliminary steps
No steps needed.
Installing a 3.5-inch HDD in a 3.5-inch installation frame

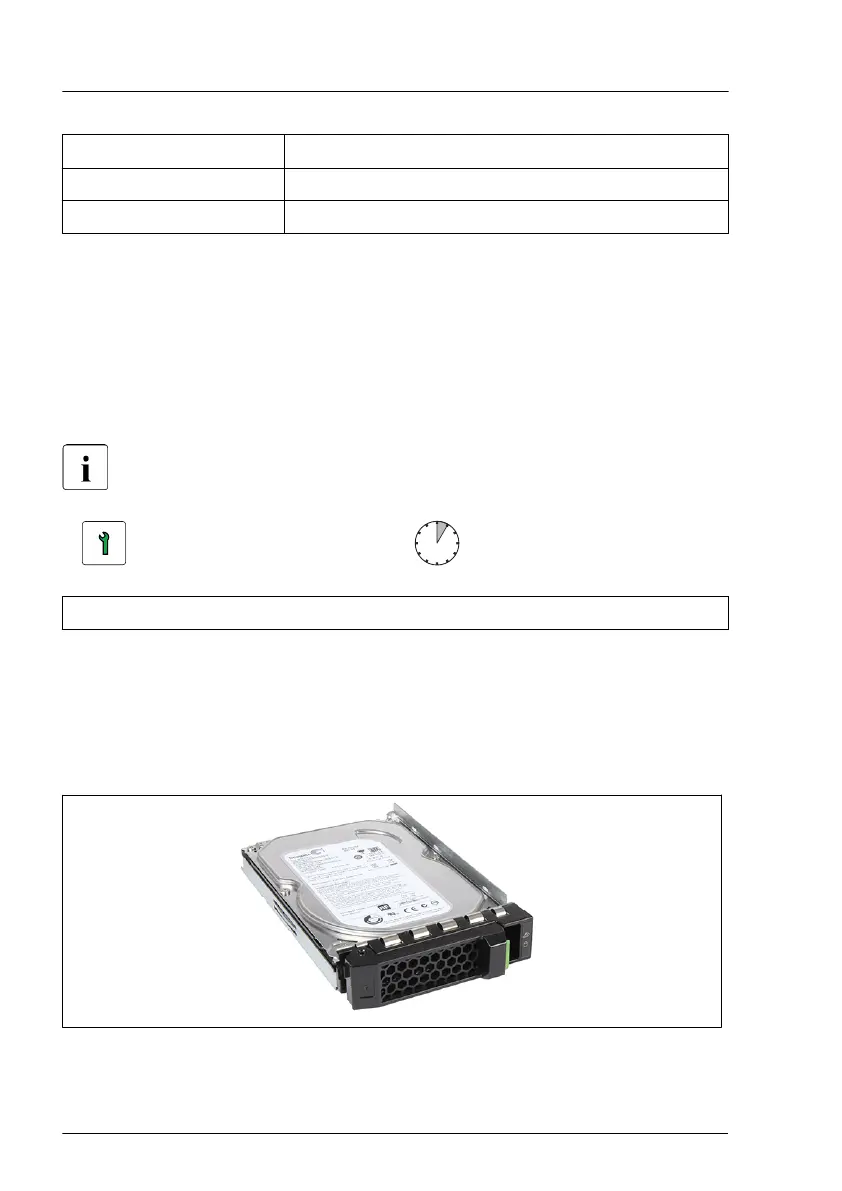

Figure 48: Installing the 3.5-inch HDD in the 3.5-inch installation frame (A)
Hard disk drive (HDD) / solid state disk (SSD)
