16RX2540 M6

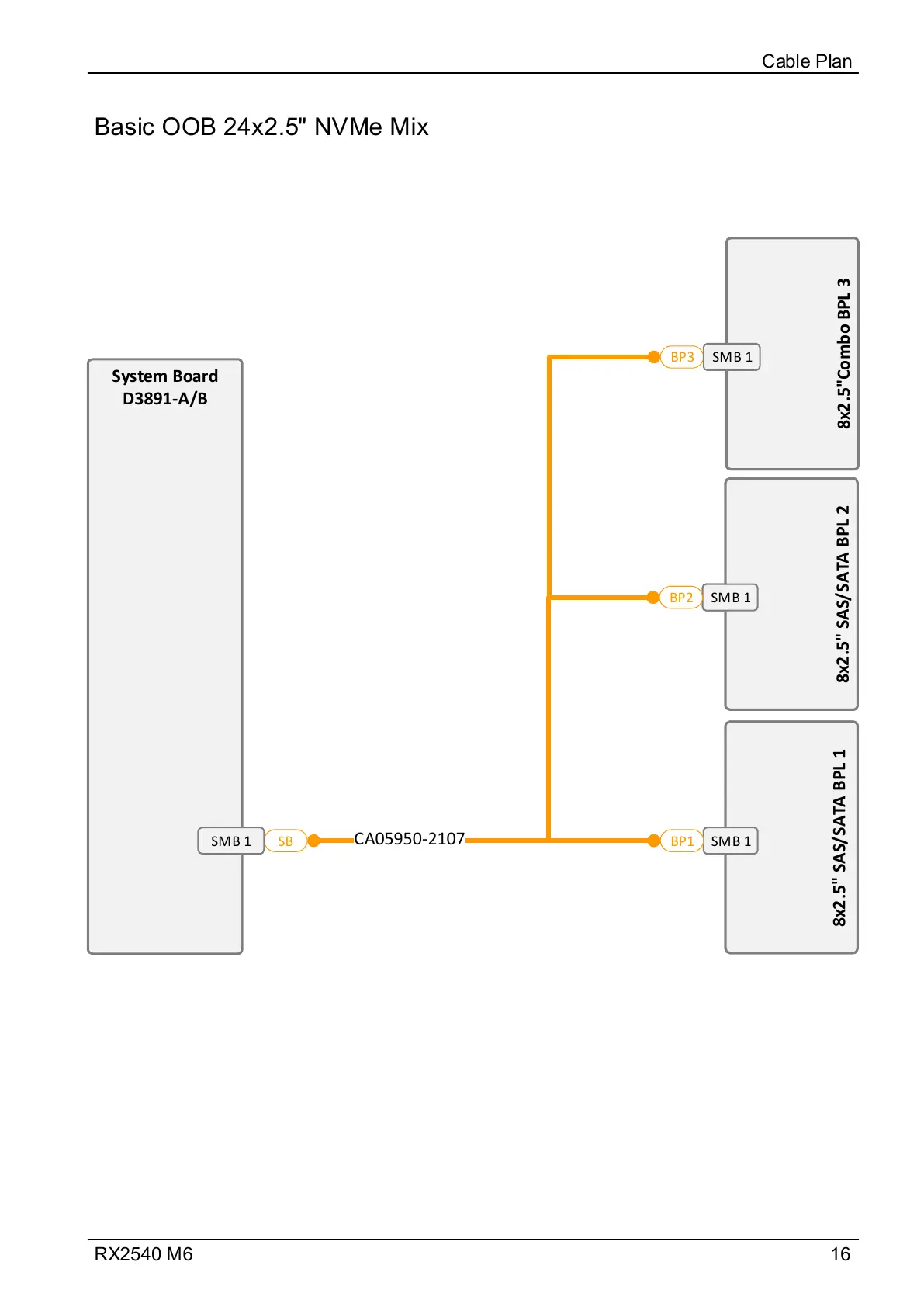

Basic OOB 24x2.5" NVMe Mix
Cable Plan
SMB 1
8x2.5" SAS/SATA BPL 2
SMB 1
8x2.5" SAS/SATA BPL 2
SMB 1
8x2.5" SAS/SATA BPL 1
SMB 1
8x2.5" SAS/SATA BPL 1
CA05950-2107
SB BP1
BP2
System Board
D3891-A/B
SMB 1
8x2.5"Combo BPL 3 8x2.5"Combo BPL 3
BP3 SMB 1
