Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

4.6.4 Sliding the server into the rack

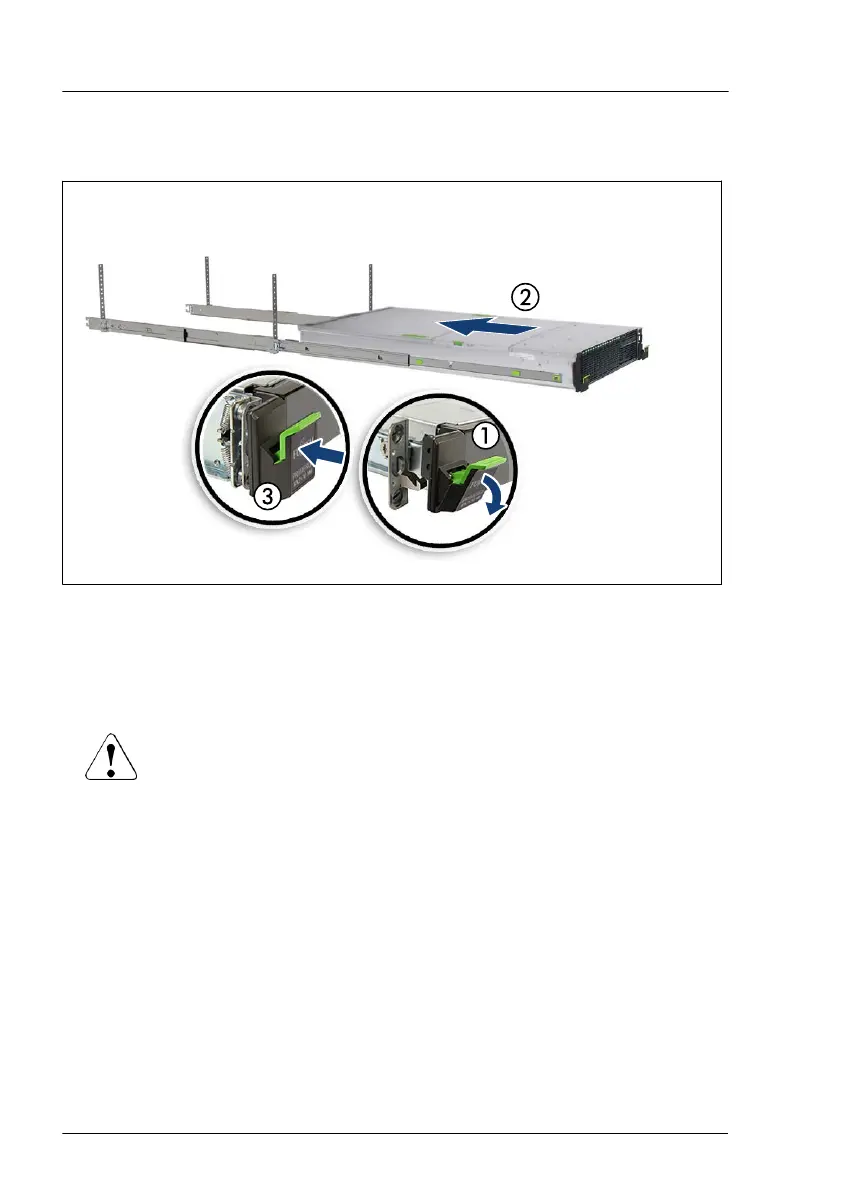

Figure 14: Sliding the server into the rack
▶
Release the locking mechanism of both rails (1).
▶
Push the server as far as it will go into the rack (2) until the two quick
release levers engage (3).
CAUTION
▶
Be careful with your fingers. You can pinch them when the quick
release levers change to the release position.
▶
Connect all cables except the power cord to the server rear
.
Basic hardware procedures
64 Upgrade and Maintenance Manual RX2540 M6

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
