4.6.2 Installing the top covers
Installing the cover 2

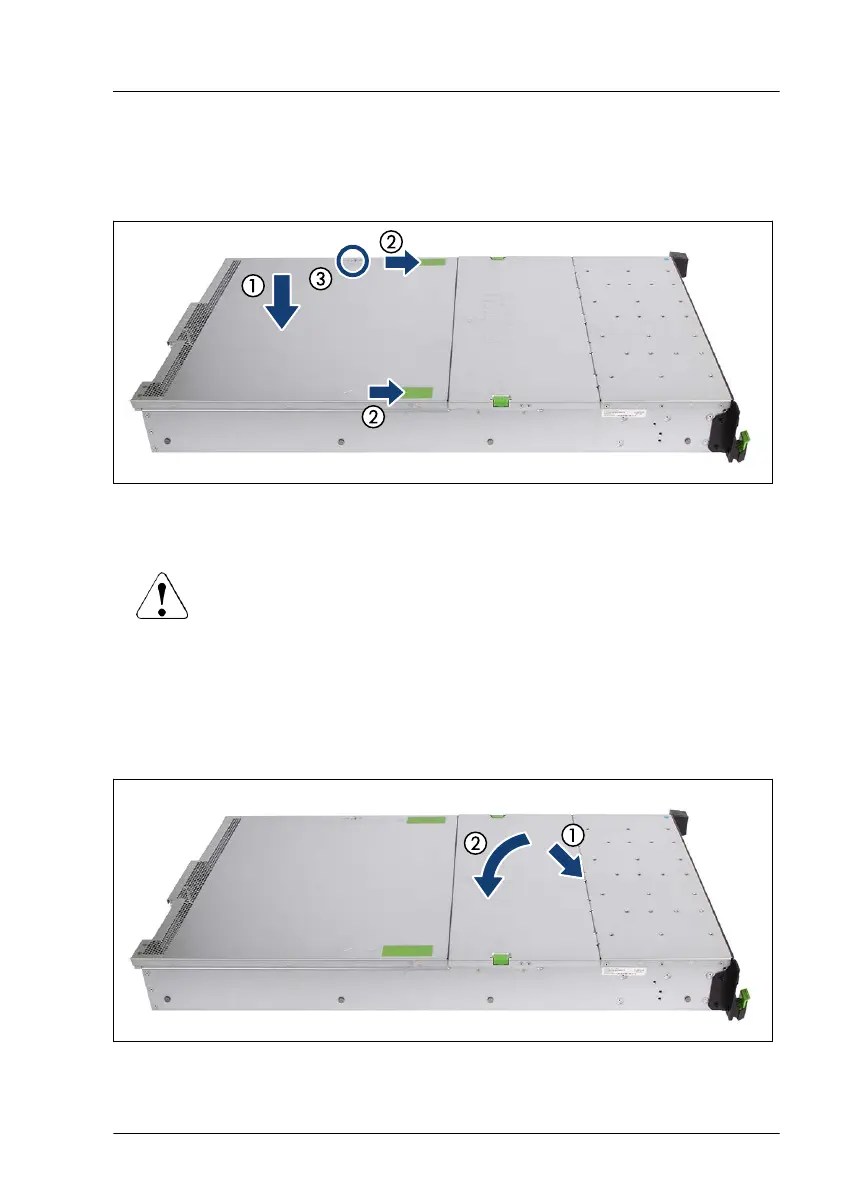

Figure 11: Installing the cover 2
▶
Position the cover 2 on the server (1). Notice the recesses.
CAUTION
▶
Take care that all cables are inside the chassis.
▶
Push the cover 2 to the front side using the green touch points (2).
▶
Fasten the cover 2 with the screw (3).
Installing the cover 1
Figure 12: Installing the cover 1
Basic hardware procedures
RX2540 M6 Upgrade and Maintenance Manual 61
