Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

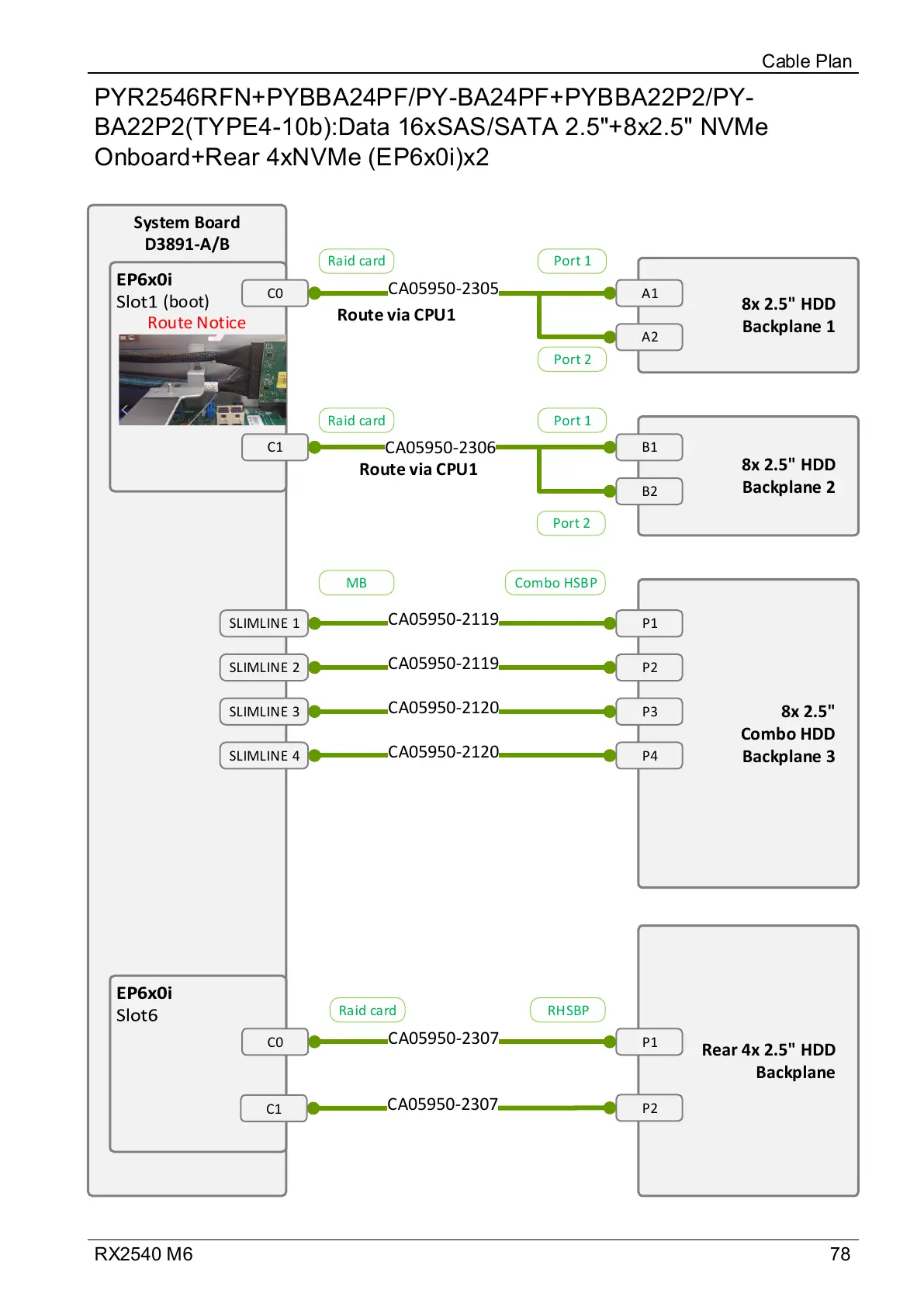

78RX2540 M6
PYR2546RFN+PYBBA24PF/PY-BA24PF+PYBBA22P2/PY-
BA22P2(TYPE4-10b):Data 16xSAS/SATA 2.5"+8x2.5" NVMe
Onboard+Rear 4xNVMe (EP6x0i)x2
Cable Plan
Rear 4x 2.5" HDD
Backplane
P1
CA05950-2307
P2
CA05950-2307
System Board
D3891-A/B
(boot)
C0
8x 2.5" HDD
Backplane 2
CA05950-2305
8x 2.5"
Combo HDD
Backplane 3
P1
P2
CA05950-2119
CA05950-2119
SLIMLINE 1
SLIMLINE 2
SLIMLINE 3
SLIMLINE 4
P3
P4
CA05950-2120
CA05950-2120
8x 2.5" HDD
Backplane 1
B1
B2
A1
A2
C1
CA05950-2306
C1
Port 1
Port 2
Port 1
Port 2
C0
Raid card
Raid card
MB Combo HSBP
Raid card RHSBP
Route via CPU1
Route via CPU1
Route Notice

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
