Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

90RX2540 M6
PYR2546RGN+PYBBA24PF/PY-BA24PF+PYBBA22P2/PY-
BA22P2(TYPE4-19):Data 16xSAS/SATA 2.5" Expander(CP/
EP5xxi)+8xNVMe Onboard+Rear 4x/6x NVMe (Retimer)

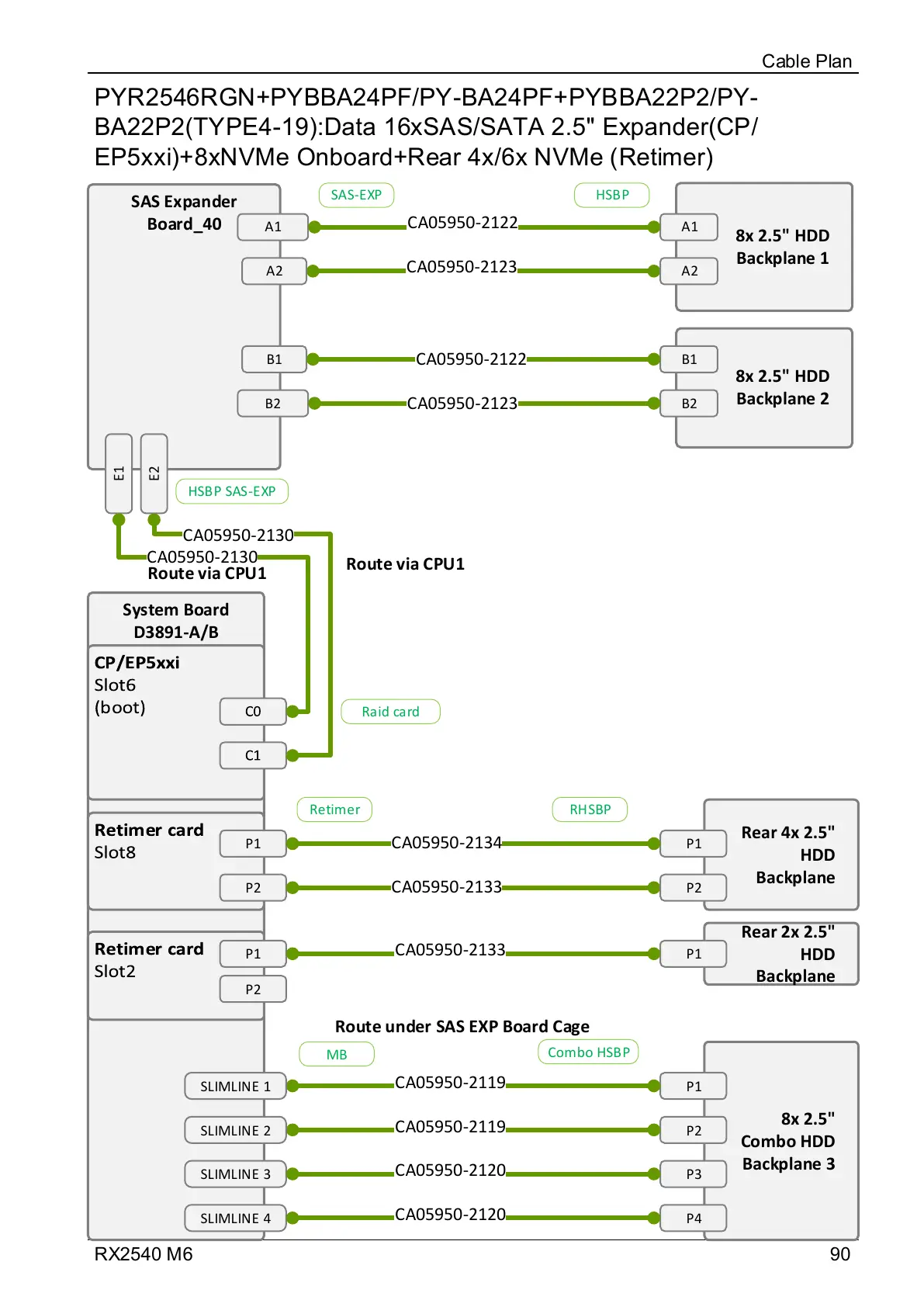

Cable Plan
System Board
D3891-A/B
SAS Expander
Board_40
A1
8x 2.5" HDD
Backplane 1
A1
CA05950-2123
CA05950-2122
8x 2.5" HDD
Backplane 2
E1 E2
CA05950-2130
CA05950-2130
A2
B1
B2
A2
B1
B2
CA05950-2122
CA05950-2123
8x 2.5"
Combo HDD
Backplane 3
P1
P2
CA05950-2119
CA05950-2119
SLIMLINE 1
SLIMLINE 2
SLIMLINE 3
SLIMLINE 4
P3
P4
CA05950-2120
CA05950-2120
P1
P2
Rear 4x 2.5"
HDD
Backplane
P1
CA05950-2134
Rear 2x 2.5"
HDD
Backplane
P1
CA05950-2133
P2
P1
P2
CA05950-2133
Raid card
HSBP SAS-EXP
SAS-EXP HSBP
MB
Combo HSBP
Retimer RHSBP
Route via CPU1
Route via CPU1
Route under SAS EXP Board Cage
