Installing a rear air grid
Installing the rear air grid 1

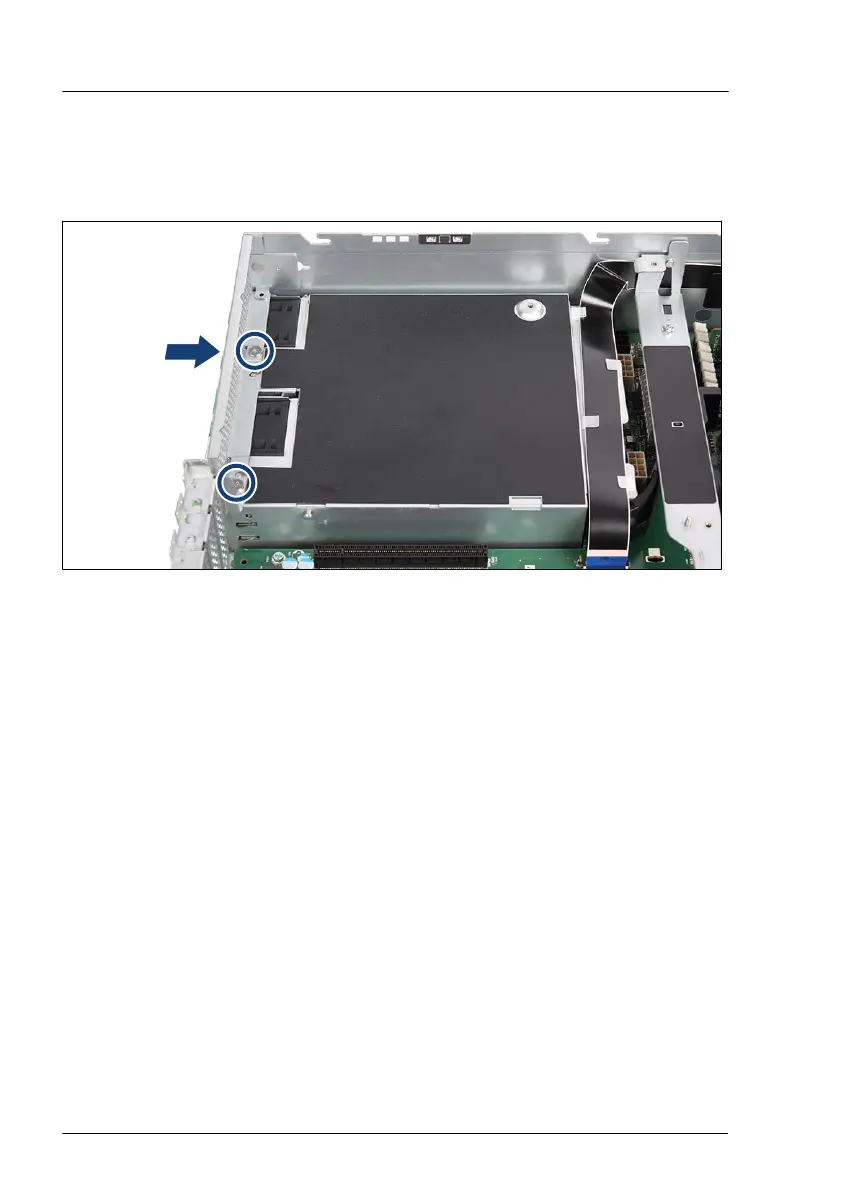

Figure 37: Installing the rear air grid 1
▶
Insert the rear air grid.
▶
Fasten the two screws (see circles).
