Removing the rear air grid 2

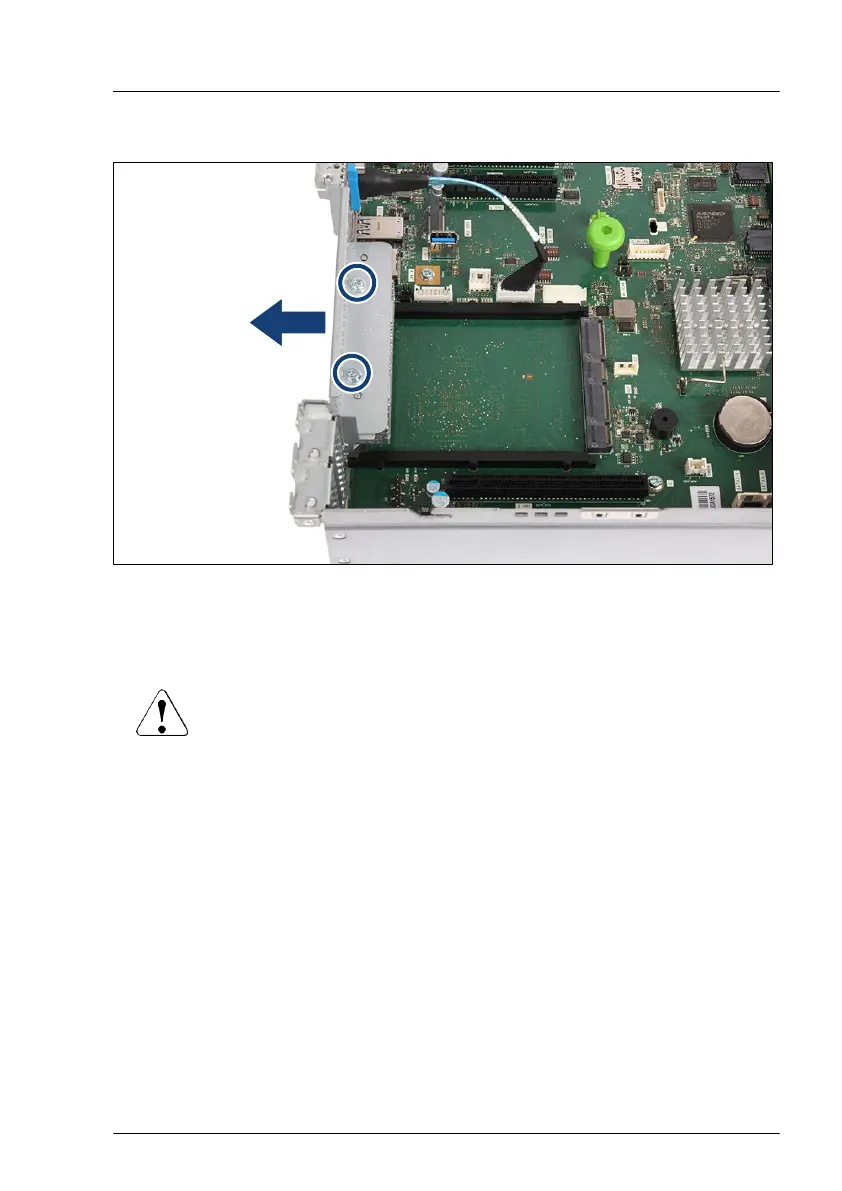

Figure 36: Removing the rear air grid 2
▶
Remove the two screws (see circles).
▶
Remove the rear air grid.
CAUTION
Keep the rear air grid for future use.
▶
Always replace rear air grids into unused installation locations to
comply with applicable EMC regulations and satisfy
coolingrequirements.
Basic hardware procedures
RX2540 M6 Upgrade and Maintenance Manual 83
